Microphone Madness MM-PSM Overview
This beige, compact Microphone Madness MM-PSM Pro Series Omnidirectional Earset Mic delivers clear spoken-word and vocal reproduction for presenters and performers working in music, theatrical, broadcast, house of worship, lecture, and presentation settings. It comes with a Hirose 4-pin connector that plugs into select Audio-Technica bodypack transmitters.
The MM-PSM Pro Series earset features a 3mm capsule mounted on a short 3.4' boom that can be discreetly positioned away from the mouth for an unobtrusive fit. The earset can be worn on either the left or right ear and feels natural when used for extended periods of time. The extremely flexible boom is virtually unbreakable.
The capsule delivers full-frequency (20 Hz to 20 kHz) audio performance and high gain before feedback for detailed speech intelligibility. The 145 dB of dynamic range makes this mic well suited for loud vocal performances in houses of worship and on the musical stage. The mic's omnidirectional polar pattern offers enhanced plosive protection with no proximity effect for a natural sound.
All MM-PSM Pro Series microphones are made in the USA.
Transmitter Compatibility
- Hirose 4-pin connector for compatibility with the following Audio-Technica wireless transmitters: ATW-T35, ATW-T75, ESW-T211, ATW-T601, ATW-T701, AEW-T1000, AEW-1000A, ATW-T1001, 600 Series, 700 Series, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series, System 10, and System 10 Pro

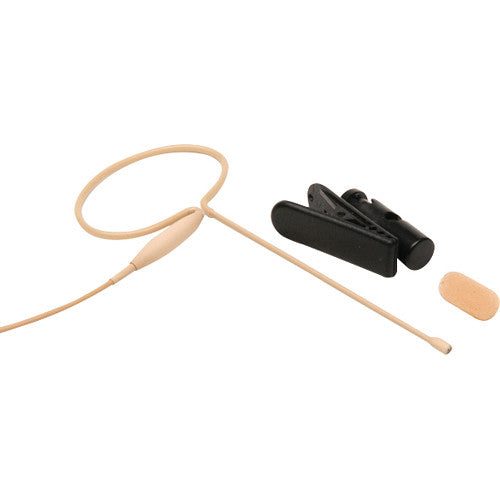

In the Box
- Microphone Madness MM-PSM Pro Series Omnidirectional Earset Mic for Select Audio-Technica Wireless Transmitters (Beige, Hirose 4-pin)
- Foam Windscreen
- Cable Clip
- Limited 1-Year Warranty
Microphone Madness MM-PSM Specs
Microphone
| Form Factor |
Headworn |
| Wearing Style |
Over-Ear (Single) |
| Compatible Transmitters |
Audio Technica: (Transmitter Models Unspecified) |
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Polar Pattern |
Omnidirectional |
| Pad |
None |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Maximum SPL |
145 dB SPL (1% THD) |
| Impedance |
3000 Ohms at 1 kHz |
| Sensitivity |
4.0 mV/Pa at 1 kHz (Open Circuit Voltage) |
| Dynamic Range |
93 dB |
| Equivalent Noise Level |
32 dB A-Weighted |
| THD |
1% |
Connectivity
| Output Connector |
1 x Hirose 4-Pin |
| Cable Length |
4.00' / 1.22 m |
| Cable Diameter |
0.078" / 1.99 mm |
Power
| Operating Voltage |
Not Specified by Manufacturer |
Physical
| Color |
Beige |
| Mounting Thread Size |
Included Mount Has No Threading |
| Dimensions |
ø: 0.08 x L: 3.4" / ø: 2 x L: 86.4 mm (Boom)
ø: 0.12" / ø: 3.05 mm (Capsule) |
| Weight |
0.6 oz / 17 g (Total) |
Packaging Info
| Package Weight |
0.1 lb |
| Box Dimensions (LxWxH) |
4.7 x 2.7 x 1.1" |
