MT29F2G16ABAEAWP-AIT:E is a NAND flash device which includes an asynchronous data interface for high-performance I/O operations. This device uses a highly multiplexed 8-bit bus (I/Ox) to transfer commands, address, and data. There are five control signals used to implement the asynchronous data interface: CE#, CLE, ALE, WE#, and RE#. Additional signals control hardware write protection and monitor device status (R/B#). This hardware interface creates a low pin-count device with a standard pinout that remains the same from one density to another, enabling future upgrades to higher densities with no board redesign. A target is the unit of memory accessed by a chip enable signal. A target contains one or more NAND flash die. A NAND flash die is the minimum unit that can independently execute commands and report status. A NAND flash die, in the ONFI specification, is referred to as a logical unit (LUN).
- 2Gb density, 16-bit device width
- 3.3V (2.7 to 3.6V) operating voltage
- Feature set E, Async interface
- Single-level cell (SLC) technology, command set: ONFI NAND flash protocol
- Operation completion, pass/fail condition, write-protect status
- Program page cache mode, read page cache mode, one-time programmable (OTP) mode
- Ready/busy# (R/B#) signal provides a hardware method of detecting operation completion
- WP# signal: write protect entire device
- Automotive industrial temperature from -40°C to +85°C

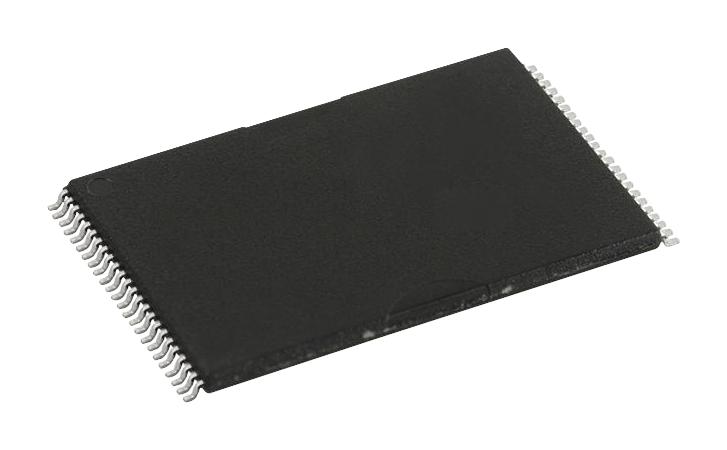

- Package style is 48-pin TSOP
Product details
| Flash Memory Type:
SLC NAND
|
| Memory Density:
2Gbit
|
| Memory Configuration:
128M x 16bit
|
| Interfaces:
Parallel
|
| IC Case / Package:
TSOP-I
|
| No. of Pins:
48Pins
|
| Clock Frequency Max:
50MHz
|
| Access Time:
16ns
|
| Supply Voltage Min:
2.7V
|
| Supply Voltage Max:
3.6V
|
| Supply Voltage Nom:
3.3V
|
| IC Mounting:
Surface Mount
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| Product Range:
2.7V-3.6V SLC NAND Flash Memories
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
MICRON |
| Part Number |
MT29F2G16ABAEAWP-AIT:E |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
