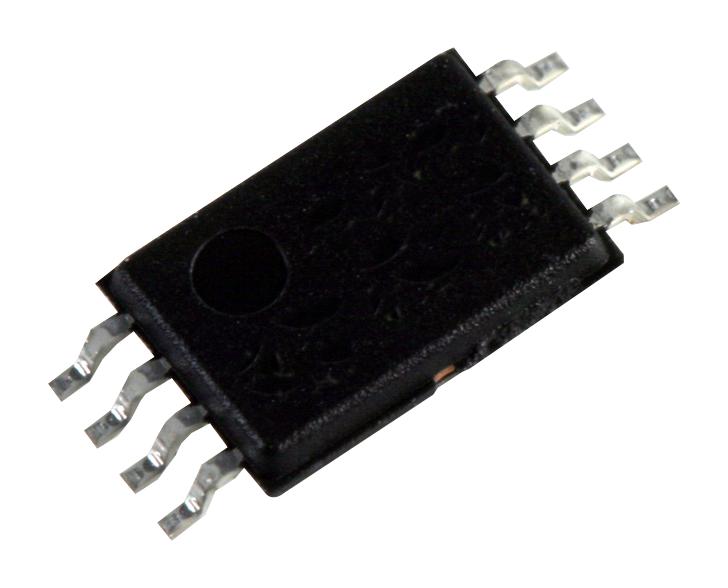

MT25QU128ABA1ESE-0SIT is a high-performance multiple input/output serial NOR flash memory device. It features a high-speed SPI-compatible bus interface, execute-in-place (XIP) functionality, advanced write protection mechanisms, and extended address access. Innovative, high-performance, dual and quad input/output commands enable double or quadruple the transfer bandwidth for READ and PROGRAM operations.
- 1.7V to 2V operating voltage
- 128Mb (16Mb) density, 1die/1 S# stack
- 2nd generation, HOLD# pin configuration
- 64Kb sectors, 4Kb and 32Kb subsectors, standard default security
- SPI-compatible serial bus interface, single and double transfer rate (STR/DTR)
- Execute-in-place (XIP), program/erase suspend operations
- Volatile and non-volatile configuration settings, software reset
- Volatile and non-volatile locking and software write protection for each 64Kb sector
- Non-volatile configuration locking, password protection
- Industrial operating temperature range from -40°C to +85°C, package style is 8-pin SOP2
Product details
| Flash Memory Type:
Serial NOR
|
| Memory Density:
128Mbit
|
| Memory Configuration:
32M x 4bit
|
| Interfaces:
SPI
|
| IC Case / Package:
WSOIC
|
| No. of Pins:
8Pins
|
| Clock Frequency Max:
166MHz
|
| Access Time:
-
|
| Supply Voltage Min:
1.7V
|
| Supply Voltage Max:
2V
|
| Supply Voltage Nom:
1.8V
|
| IC Mounting:
Surface Mount
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| Product Range:
1.7V-2V Serial NOR Flash Memories
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
MICRON |
| Part Number |
MT25QU128ABA1ESE-0SIT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
