Description
The USB2512BI-AEZG is a 2-port USB 2.0 high-speed low-power Hub Controller IC for embedded USB solutions. The leveraging Microchip's innovative MultiTRAK� technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB251xB family is an USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance. Over 30 programmable features including Microchip's unique PortMap, PortSwap and PHYBoost are designed to aid system designers in simplifying PCB layout and optimizing bill-of-material cost. Every downstream port of the USB251xB hubs can be enabled to support USB battery charging 1.1 specification as a Charging Downstream Port (CDP). A CDP provides universal battery charging capability to a compliant mobile phone or portable electronic device using a standard USB port.
- Full power management with individual or ganged power control of each downstream port
- Fully integrated USB termination and pull-up/pull-down resistors
- Onboard 24MHz crystal driver, ceramic resonator or external 24/48MHz clock input
- Customizable vendor ID, product ID and device ID
- 4kV of HBM JESD22-A114F ESD protection (powered and unpowered)
- Supports self- or bus-powered operation
- Support the USB battery charging specification rev. 1.1 for charging downstream ports (CDP)
- PortMap - flexible port mapping and disable sequencing
Applications
Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Automotive
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| USB IC Type: USB Hub Controller |
| USB Standard: USB 2.0 |
| Supply Voltage Min: 3V |
| Supply Voltage Max: 3.6V |

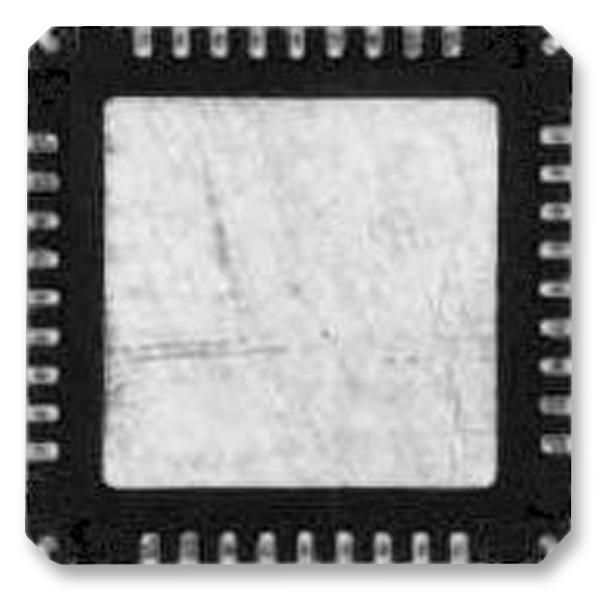

| IC Case / Package: QFN |
| No. of Pins: 36Pins |
| Data Rate: 100Kbps |
| No. of Ports: 2Ports |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | USB2512BI-AEZG |
| Quantity | Each |
| Technical Data Sheet EN |  |
