Description

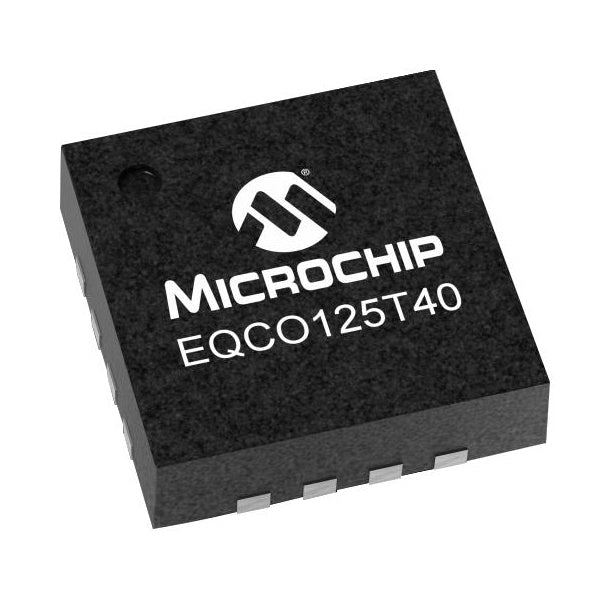

The EQCO125x40 uses the same chip at device (camera) and host (frame grabber) for asymmetric full-duplex communication.
Features & Specs
- Equalizer for up to 40m of coaxial cable at 12.5Gbps or 130m at 1.25Gbps over a single Belden 1694A coax cable
- Same chip used at device (camera) and host (frame grabber) for asymmetric full-duplex communication
- Lower cost version EQCO125T40 for device (camera) side only
- Cable types supported are 75 coax, 50 coax, and 100 STP (Shielded Twisted Pair)
- Simultaneous signaling over a single cable:
- Up to 12.5Gbps downlink
- 21Mbps or 42Mbps uplink
- Power over coax
- Can also be used as a stand-alone cable repeater with simultaneous power and also for downlink and uplink over a single cable
- Integrated termination resistors for differential signaling
- Clock-Data Recovery (CDR) restores signal integrity in both directions
- Both uplink and downlink include an equalizer, CDR, and cable driver
- Reference-clock free operation (no crystal or clock needed)
- Low power consumption / single supply @ 1.25V
- 16-pin 0.65mm pin pitch 4mm QFN package
- Small PCB footprint with few off-chip components
- Industrial temperature range
Features & Specs
- Equalizer for up to 40m of coaxial cable at 12.5Gbps or 130m at 1.25Gbps over a single Belden 1694A coax cable
- Same chip used at device (camera) and host (frame grabber) for asymmetric full-duplex communication
- Lower cost version EQCO125T40 for device (camera) side only
- Cable types supported are 75 coax, 50 coax, and 100 STP (Shielded Twisted Pair)
- Simultaneous signaling over a single cable:
- Up to 12.5Gbps downlink
- 21Mbps or 42Mbps uplink
- Power over coax
- Can also be used as a stand-alone cable repeater with simultaneous power and also for downlink and uplink over a single cable
- Integrated termination resistors for differential signaling
- Clock-Data Recovery (CDR) restores signal integrity in both directions
- Both uplink and downlink include an equalizer, CDR, and cable driver
- Reference-clock free operation (no crystal or clock needed)
- Low power consumption / single supply @ 1.25V
- 16-pin 0.65mm pin pitch 4mm QFN package
- Small PCB footprint with few off-chip components
- Industrial temperature range
