| ₹ 96.76 includes GST and import duties. | |
| B2B customers can avail ₹ 14.76 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

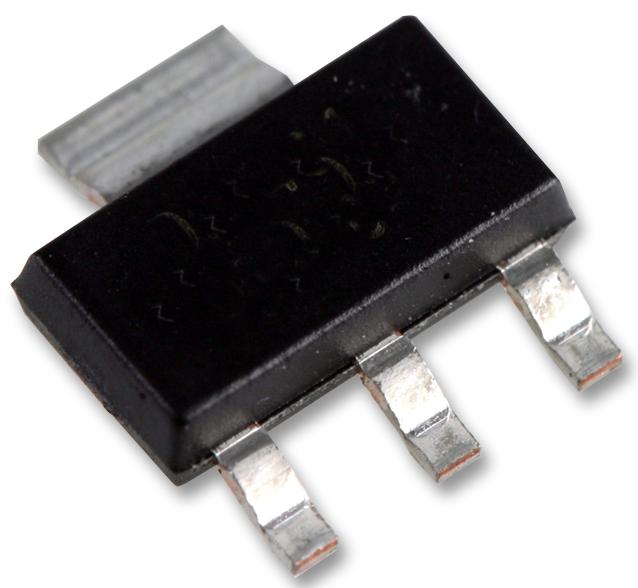

The TC1262-3.3VDB is a fixed output high accuracy CMOS low dropout (LDO) regulator in 3 pin SOT-223 package. This device is designed specifically for battery operated systems. The TC1262 CMOS construction eliminates wasted ground current and significantly extends battery life. Total supply current is typically 80µA at full load (20 to 60 times lower than in bipolar regulators). This regulator is stable with an output capacitor of only 1µF and has maximum output current of 500mA.
- Fixed output voltage of 3.3V
- 500mA output current
- High output voltage accuracy is typically ±0.5%
- Overcurrent and overtemperature protection
- Input operating voltage range from 2.7V to 6V
- Very low dropout voltage of 350mV at 500mA load current
- Operating temperature range from -40°C to 125°C
- Ultra low noise operation
- Fast response to step changes in load
Power Management, Portable Devices, Medical, Sensing & Instrumentation, Automotive
Other details
| Brand | MICROCHIP |
| Part Number | TC1262-3.3VDB |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 94.82 |
| 3-5 | ₹ 93.86 |
| 5-10 | ₹ 91.92 |
| 10+ | ₹ 89.99 |
Bulk discount will be automatically applied during checkout based on quantity.
