Description
The TC1047AVNBTR is a precision temperature to voltage converter in 3 pin SOT-23B package. The output voltage of this device is directly proportional to measured temperature. The output voltage range is typically 100mV at -40°C, 500mV at 0°C, 750mV at +25°C and 1.75V at +125°C. A 10mV/°C voltage slope output response allows for predictable temperature measurement over a wide temperature range.
- Supply voltage range from 2.5V to 5.5V
- Output voltage of 750mV at TA = 25°C
- High temperature converter accuracy of ±0.5°C at 25°C
- Linear temperature slope of 10mV/°C
- Very low supply current of 35µA
- Output source and sink current of 100µA
- Wide temperature measurement range from -40°C to 125°C
Applications
Sensing & Instrumentation, Consumer Electronics, Portable Devices, Automotive
Product details
| Sensing Accuracy Range | ± 2°C |
| Sensor Case Style | SOT-23 |
| No. of Pins | 3Pins |
| Sensing Temperature Max | +125°C |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| Sensing Temperature Min | -40°C |
| IC Output Type | Voltage |
| Supply Voltage Min | 2.5V |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | TC1047AVNBTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

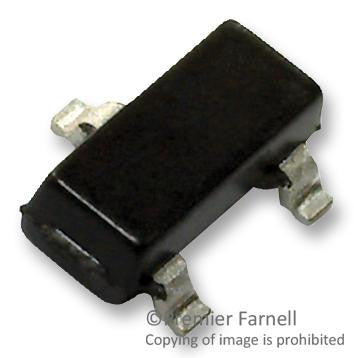

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
