Description

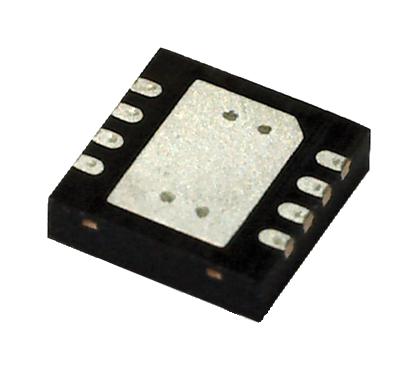

The SST26VF032B-104I/MF is a 32MB serial quad I/O (SQI) Flash Memory features a 6-wire, 4-bit I/O interface that allows for low-power, high-performance operation. It also supports full command-set compatibility to traditional serial peripheral interface (SPI) protocol. System designs using SQI flash devices occupy less board space. It is manufactured with proprietary, high-performance CMOS SuperFlash® technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. It is significantly improves performance and reliability, while lowering power consumption. This device writes with a single power supply of 2.7 to 3.6V. Since for any given voltage range, the SuperFlash technology uses less current to program and has a shorter erase time, the total energy consumed during any erase or program operation is less than alternative flash memory technologies.
- Serial interface architecture - mode 0/3
- Nibble-wide multiplexed I/O with SPI-like serial command structure
- High speed clock frequency - 104MHz maximum
- Burst modes - continuous linear burst
- Superior reliability
- Endurance - 100000 cycles minimum
- Greater than 100 years data retention
- Low power consumption
- Fast erase time
- End-of-write detection - software polling the BUSY bit in status register
- Flexible erase capability
- Write-suspend - suspend program or erase operation to access another block/sector
- Software reset (RST) mode
- Software write protection
- Individual-block write protection with permanent lock-down capability
- Read protection on top and bottom 8-Kbyte parameter blocks
- Security ID
- User-programmable area
Applications
Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Flash Memory Type: Serial NOR |
| Memory Density: 32Mbit |
| Memory Configuration: - |
| Interfaces: SPI, SDI, SQI |
| IC Case / Package: WDFN |
| No. of Pins: 8Pins |
| Clock Frequency Max: 104MHz |
| Access Time: - |
| Supply Voltage Min: 2.7V |
| Supply Voltage Max: 3.6V |
| Supply Voltage Nom: 3.3V |
| IC Mounting: Surface Mount |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: 3V Serial NOR Flash Memories |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | SST26VF032B-104I/MF |
| Quantity | Each |
| Technical Data Sheet EN |  |
