Description
Product Overview

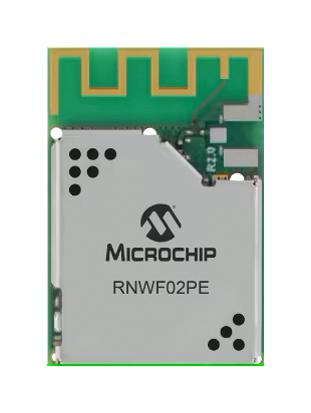

RNWF02PE-I/100 is a RNWF02 module with PCB antenna. The RNWF02 Module is a 2.4GHz IEEE 802.11b/g/n compliant, fully RF and Wi-Fi Alliance®-certified wireless module. This is interfaced via a two-wire or four-wire UART interface with Microchip�s simple ASCII-based AT commands for easy integration into most of the applications. The host microcontroller can dynamically configure the RNWF02 module with a few simple ASCII commands.
- FCC, ISED, CE, UKCA, MIC, KCC and NCC regulatory certification
- IEEE 802.11 b/g/n, single stream (1x1) 20MHz bandwidth WLAN link
- TCP/IP-based connectivity protocols along with SSL and MQTT capabilities
- Supports STA mode and soft AP functionality in IEEE 802.11 infrastructure and IBSS networks
- PMF handled in hardware, WPA3 support, integrated PA and TX/RX switch and power management
- Internal flash memory (2MB) to store firmware, immutable secure boot with hardware root of trust
- Supports Host Assisted OTA firmware update, supports Extreme Deep Sleep (XDS) mode
- On-chip network stack to offload MCU
- UART host interface
- Secure device firmware upgrade (DFU)
Product details
Other details
| Brand | MICROCHIP |
| Part Number | RNWF02PE-I/100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
