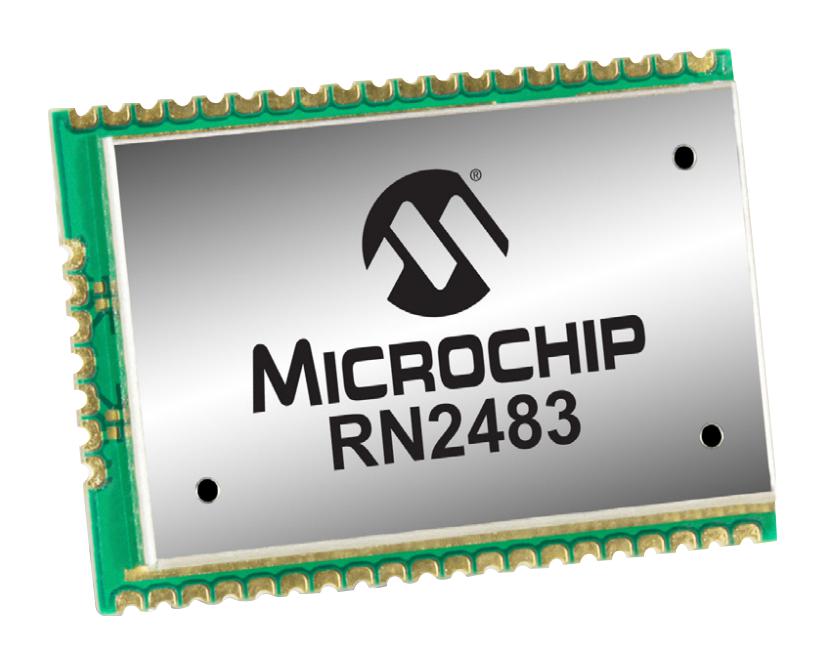

Microchip RN2483A-I/RM104 Transceiver Module FSK Gfsk Lora 300Kbps 870MHz -146 dBm 2.1V to 3.6V Supply I2C SPI Uart

Microchip's RN2483 Low-Power Long Range LoRa Technology Transceiver module provides an easy to use, low-power solution for long range wireless data transmission. The advanced command interface offers rapid time to market. The RN2483 module complies with the LoRaWAN Class A protocol specifications. It integrates RF, a baseband controller, command Application Programming Interface (API) processor, making it a complete long range solution.

• On-Board LoRaWANâ�¢ Protocol Stack
• ASCII Command Interface over UART
• Programmable RF Communication Bit Rate up to 300 kbps with FSK Modulation, 10937 bps with LoRa® Technology Modulation
• Integrated MCU, Crystal, EUI-64 Node Identity Serial EEPROM, Radio Transceiver with Analog Front End, Matching Circuitry
• Low-Power Long Range Transceiver Operating in the 433 MHz and 868 MHz Frequency Bands
• High Receiver Sensitivity: Down to -146 dBm
• TX Power: Adjustable up to +14 dBm high Efficiency PA
• FSK, GFSK, and LoRa Technology Modulation
• IIP3 = -11 dBm

Applications

Automation & Process Control, Metering, Industrial Automation

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	RN2483A-I/RM104
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
