Description

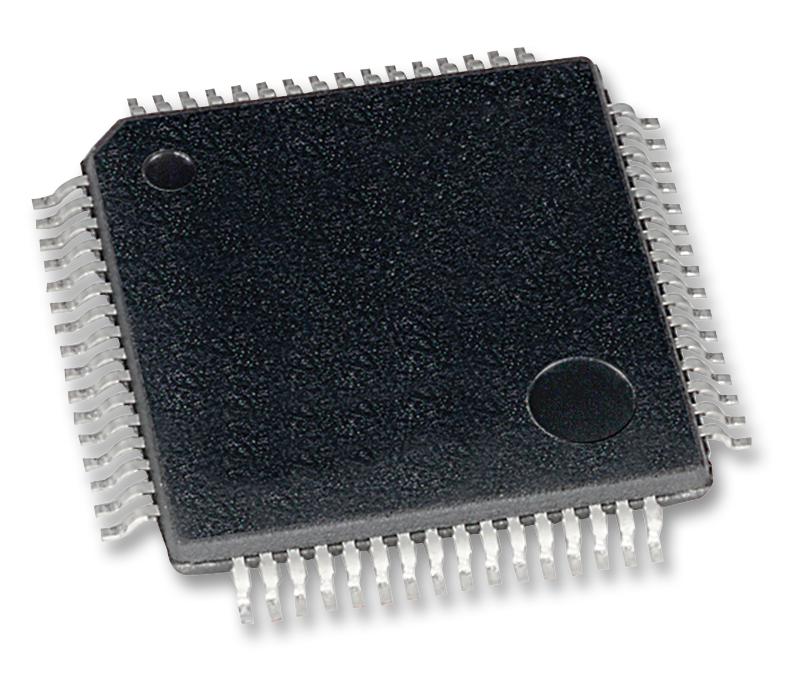

The PIC32MZ2048EFM064-I/PT is a high performance PIC32MZ family 32-bit Microcontroller packs powerful PIC®(RISC) architecture with microAptivâ�¢/M-Class core. This product offer all of the advantages of the well recognized high-performance x32 architecture with standardized features including 2048kB of addressable program memory size, 160kB of Auxiliary flash, 524288bytes of data memory size, two comparators and 24-channel 12-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 200MHz with wide operating voltage of 2.2 to 3.6V.
- 5 Stage pipeline
- 330DMIPS microAptiv�/M-Class Core
- 8-Channel DMA
- high-speed USB 2.0 Device/Host/OTG
- Nine 16-bit timers
- Four 32-bit timers
- 9x Capture/Compare/PWM (CCP)
- CODEC Interface (I2S,AC97)
- Peripheral pin select (PPS) Crossbar
- 2x Controller area network (CAN)
- 10/100 Base-TX Ethernet Mac
- Crypto engine
- Floating point unit (FPU)
- Instruction trace
Applications
Communications & Networking, Audio, Embedded Design & Development, Multimedia
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC32 Family PIC32MZ EF Series Microcontrollers |
| Device Core: PIC32 MZ |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 200MHz |
| Program Memory Size: 2MB |
| No. of Pins: 64Pins |
| IC Case / Package: TQFP |
| No. of I/O's: 53I/O's |
| Interfaces: CAN, Ethernet, I2C, I2S, SPI, UART, USB |
| RAM Memory Size: 512KB |
| ADC Channels: 24Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 2.1V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC32 |
| MCU Series: PIC32MZ EF |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC32MZ2048EFM064-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
