Description

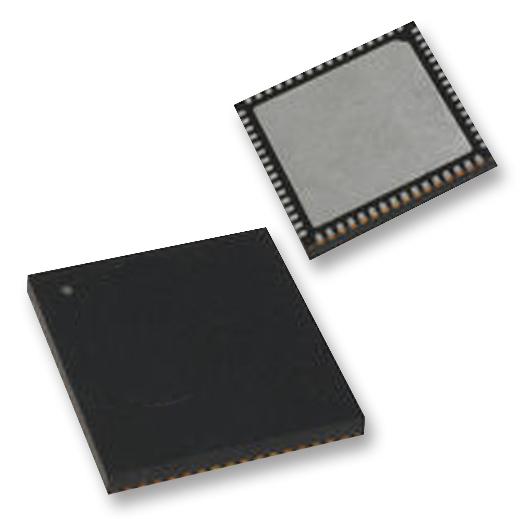

The PIC32MX575F256H-80I/MR is a high performance PIC32MX family 32-bit Microcontroller packs powerful PIC®(RISC) architecture with MIPS M4K core. This product offer all of the advantages of the well recognized high-performance x32 architecture with standardized features including 256kB of addressable program memory size, 12kB of Auxiliary flash, 65536bytes of data memory size, two comparators and 16-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 80MHz with wide operating voltage of 2.3 to 3.6V.
- 5 Stage pipeline
- 105DMIPS MIPS M4K Core
- 8-Channel DMA
- full-speed USB 2.0 Device/Host/OTG
- Five 16-bit timers
- Two 32-bit timers
- 5x Capture/Compare/PWM (CCP)
- Controller area network (CAN)
- Instruction trace
Applications
Communications & Networking, Audio, Embedded Design & Development, Multimedia
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC32 Family PIC32MX Series Microcontrollers |
| Device Core: PIC32 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 80MHz |
| Program Memory Size: 256KB |
| No. of Pins: 64Pins |
| IC Case / Package: QFN |
| No. of I/O's: 53I/O's |
| Interfaces: CAN, I2C, SPI, UART, USB |
| RAM Memory Size: 64KB |
| ADC Channels: 16Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2.3V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC32 |
| MCU Series: PIC32MX |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC32MX575F256H-80I/MR |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1131.26 |
| 3-5 | ₹ 1119.72 |
| 5-10 | ₹ 1096.63 |
| 10+ | ₹ 1073.55 |
Bulk discount will be automatically applied during checkout based on quantity.
