Description

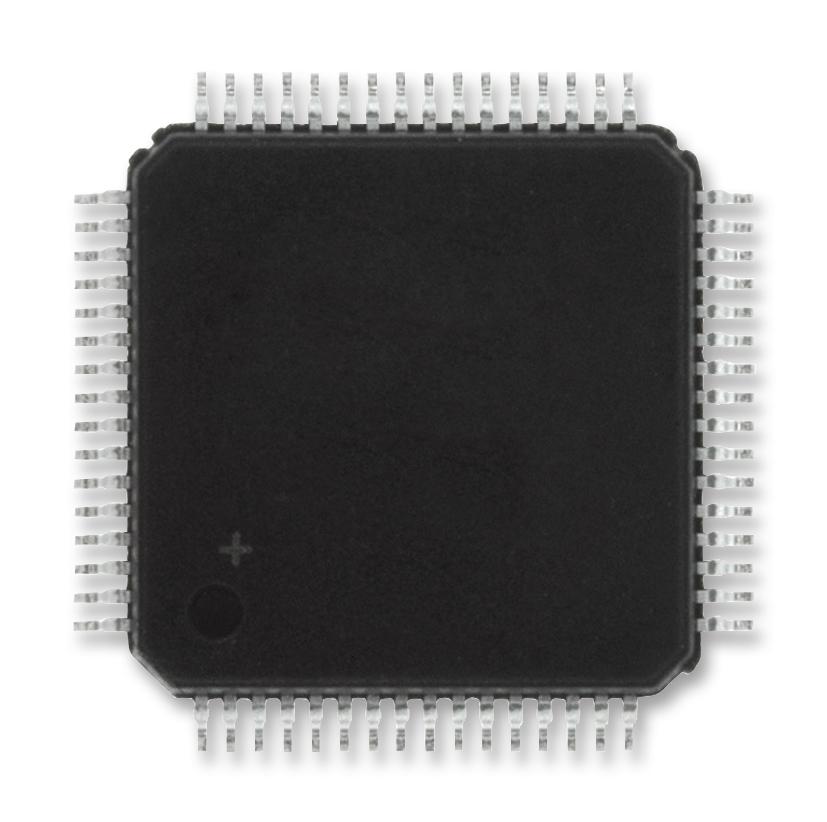

The PIC32MX550F256H-I/PT is a high performance PIC32MX family 32-bit Microcontroller packs powerful PIC®(RISC) architecture with MIPS M4K core. This product offer all of the advantages of the well recognized high-performance x32 architecture with standardized features including 256kB of addressable program memory size, 3kB of Auxiliary flash, 32768bytes of data memory size, Three comparators and 28-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 50MHz with wide operating voltage of 2.3 to 3.6V.
- 5 Stage pipeline
- 83DMIPS MIPS M4K Core
- 8-Channel DMA
- full-speed USB 2.0 Device/Host/OTG
- Five 16-bit timers
- Two 32-bit timers
- 5x Capture/Compare/PWM (CCP)
- CODEC Interface (I2S,AC97)
- Peripheral pin select (PPS) Crossbar
- Controller area network (CAN)
- Instruction trace
Applications
Communications & Networking, Audio, Embedded Design & Development, Multimedia
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC32 Family PIC32MX Series Microcontrollers |
| Device Core: PIC32 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 50MHz |
| Program Memory Size: 256KB |
| No. of Pins: 64Pins |
| IC Case / Package: TQFP |
| No. of I/O's: 49I/O's |
| Interfaces: CAN, I2C, I2S, SPI, UART, USB |
| RAM Memory Size: 32KB |
| ADC Channels: 28Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2.3V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC32 |
| MCU Series: PIC32MX |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | PIC32MX550F256H-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
