Microchip PIC32MX470F512H-I/PT PIC32MX470F512H-I/PT 32 Bit Microcontroller General Performance PIC32 Family PIC32MX Series Microcontrollers

The PIC32MX470F512H-I/PT is a 32-bit 64-pin 512kB general purpose USB Flash Microcontroller features audio/graphics/touch (HMI), USB and advanced analogue. The PIC32MX470 family of 32-bit microcontroller (MCUs) requires attention to a minimal set of device pin connections before proceeding with development. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of instruction execution to the destinations. The MIPS32® M4K® processor core contains several logic blocks working together in parallel, providing an efficient high-performance computing engine. The MIPS® M4K® processor core offers many power management features, including low-power design, active power management and power-down modes of operation. The core is a static design that supports slowing or halting the clocks, which reduces system power consumption during idle periods.

• Two I²S/SPI modules for Codec and serial communications
• Peripherals - Peripheral pin select (PPS) functionality
• Parallel master port (PMP) for graphics interfaces
• Charge time measurement unit (CTMU)
• MIPS16e® mode for up to 40% smaller code size
• Pin-compatible with most Microchip 16-bit devices
• Low-power management modes (idle and sleep)
• Peripheral - Peripheral pin select (PPS) functionality, hardware real-time clock & calendar (RTCC)
• Audio/graphics/touch HMI - External graphics interface with up to 34 PMP pins
• Advanced analogue - ADC module and two dual-input comparator modules
• Debugger development support
• Direct memory access (DMA)
• Qualification and class B support

Applications

Computers & Computer Peripherals, Industrial, Audio, Consumer Electronics

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC32MX470F512H-I/PT
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN

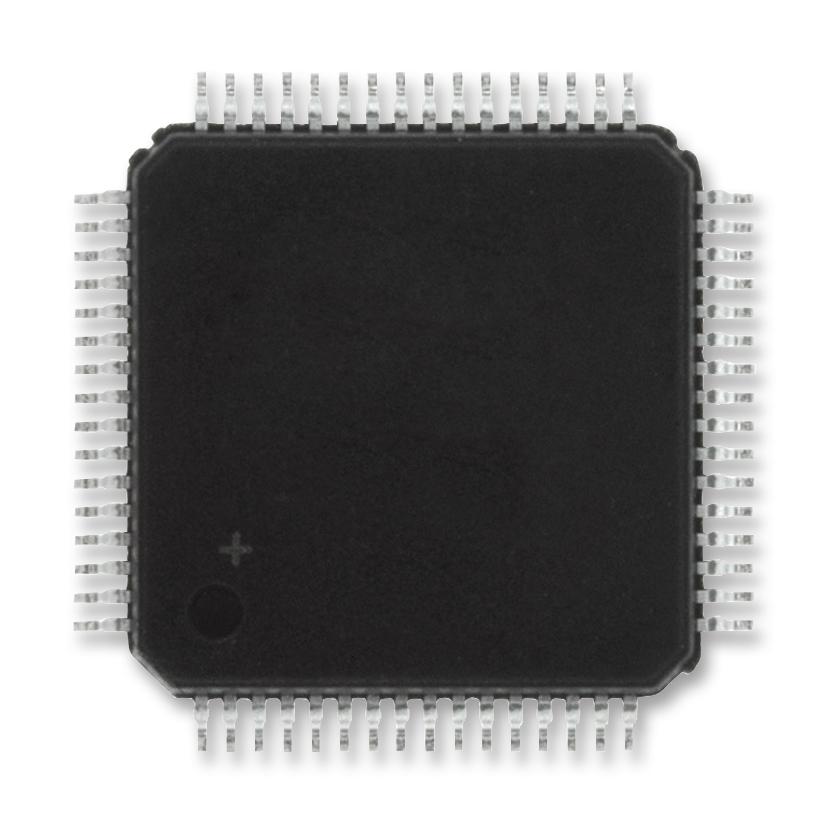

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
