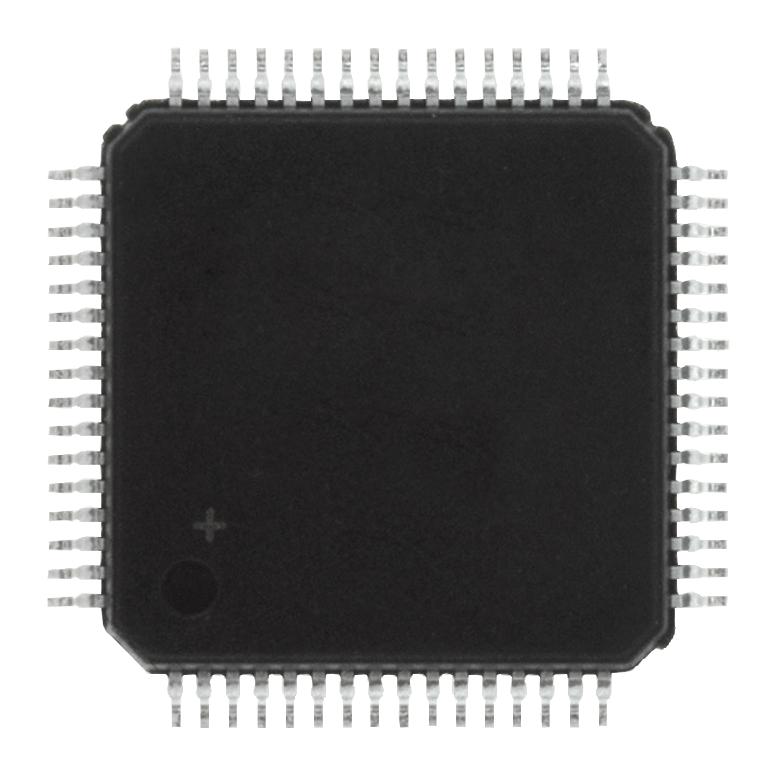

MICROCHIP PIC32CK2051GC01064-I/3ZB-SL3 ARM MCU, 32BIT, 120MHZ, 50I/O, TQFPEP-64

PIC32CK2051GC01064-I/3ZB-SL3 is a PIC32CK GC, 32-bit MCU with TrustZone and integrated security. This microcontroller (MCU) is based on the Arm® Cortex®-M33 technology. The M33 is optimized for power-sensitive microcontroller and mixed-signal applications. It improves performance over the previous generation, real-time determinism, energy efficiency, software productivity, and system security. It offers a large memory capacity with 2Mb of dual-panel flash and 512Kb of SRAM. The GC variants are intended for general-purpose mixed-signal applications that do not need the HSM and advanced security features.

• Arm® Cortex®-M33 CPU running at up to 120MHz, 2048Kb flash and 512Kb RAM memory
• General purpose (without TrustZone and HSM) key feature set, ethernet, CAN field
• Peripheral Touch Controller (PTC) with Driven Shield®
• Parallel capture interface-camera (PCC)
• 16-bit external bus interface (EBI) for SRAM, flash, PSRAM, EEPROM, and LCD
• 12-bit 3Msps ADC with 12-channels, 2-analog comparators
• 2-wire serial wire debug (SWD) interface, 4-wire JTAG scan/debug interface
• Embedded trace module with instruction trace stream
• Standby mode, hibernate mode up to full RAM retention, sleep walking peripherals
• Industrial temperature range from -40°C to + 85°C, 64-lead TQFP package
