MICROCHIP PIC32AK1216GC41064-I/M7 32 Bit Microcontroller, PIC32 Family PIC32AK Series Microcontrollers, PIC32, 32 bit, 200 MHz

PIC32AK1216GC41064-I/M7 is a high-performance 32bit microcontroller from Microchip's PIC32AK family, built on a powerful MIPS-based core. It operates at speeds of up to 200MHz and features an integrated single and double-precision Floating-Point Unit (FPU), making it ideal for complex signal processing and control applications. The device offers up to 128kB of ECC-protected Flash memory and 16 KB of ECC RAM, along with a 6-channel DMA controller for efficient data handling. It supports a rich peripheral set including UART, SPI, I²C, SENT, QEI, and PWM modules.

• 128kbytes flash, 16kbytes RAM
• Dual 12bit ADCs up to 40Msps with 22 configurable analogue inputs
• Three 100MHz rail-to-rail op-amps and high-speed analogue comparators with DACs
• High-current I/Os with programmable pull-up/down, open-drain, and PPS remappable pins
• Edge/level interrupts on I/O with 5 external sources and programmable interrupt priorities
• Clocking options: 8MHz FRC/BFRC, crystal, dual 1.6GHz PLLs, REFO output
• Four PWM generators with 8 outputs, 2.5ns resolution, supporting various motor types
• Robust security: secure boot, debug, immutable root of trust, flash write protection
• Safety features: watchdog timers, fail-safe clock, ECC on flash/RAM, CRC, MBIST

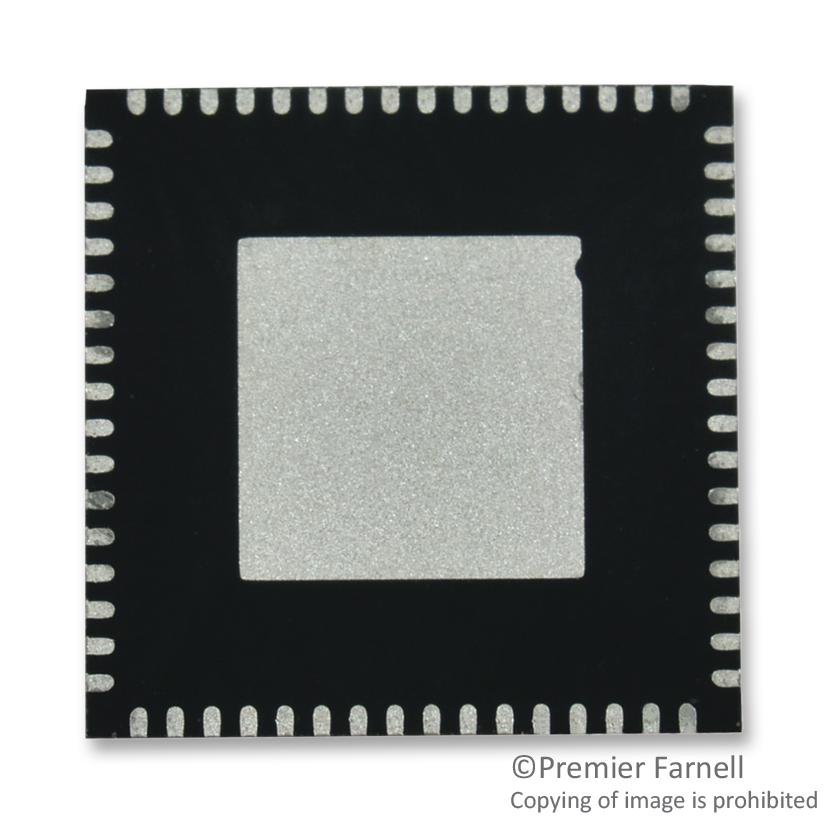

• Available in 64 pin VQFN package, temperature range from -40°C to 85°C (industrial)
