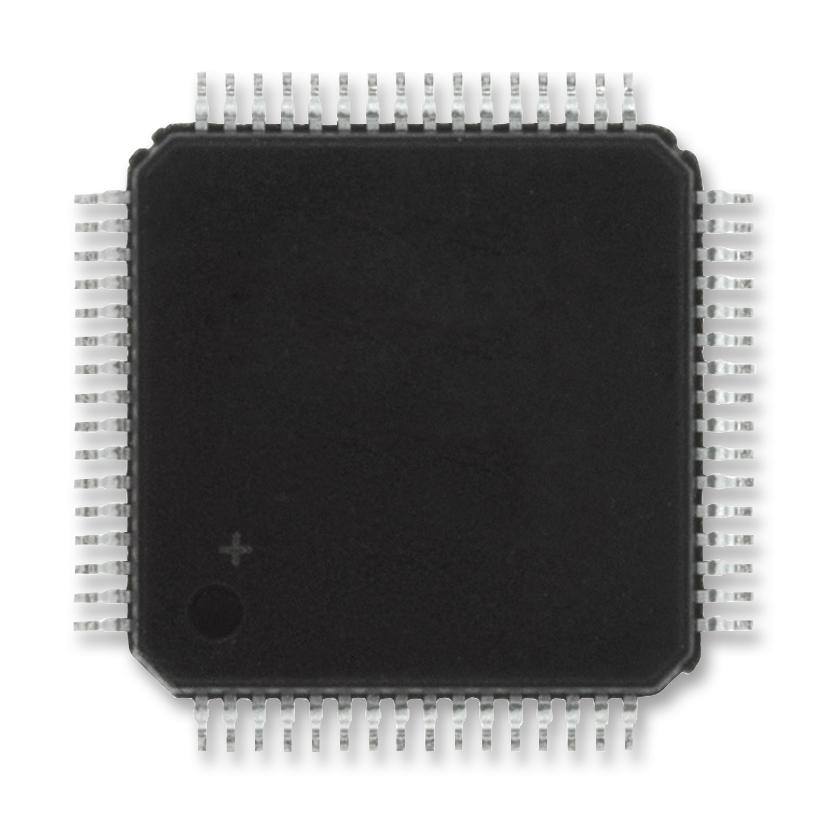

Microchip PIC24HJ128GP506A-I/PT PIC24HJ128GP506A-I/PT 16 Bit Microcontroller PIC24 Family PIC24HJ GP Series Microcontrollers bit 40 MHz

The PIC24HJ128GP506A-I/PT is a general purpose PIC24H family highest performance and excellent code density 16-bit Microcontroller packs powerful PIC®(RISC) architecture with up to 70 MIPS of performance at 3.3V. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 128kB of addressable program memory size, 8192bytes of data memory size, 53 general-purpose I/O pins and 18-channel 10/12-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 40MHz with wide operating voltage of 3 to 3.6V.

• Single cycle execution and fast interrupts (5 cycles)
• Brown-out reset (BOR)
• Power on reset (POR)
• Watch dog timer (WDT)
• 8-Channel DMA
• Controller area network (CAN)
• Local interconnect network (LIN)
• IrDA
• Parallel port GPIO
• Nine 16-bit timers
• Four 32-bit timers

Applications

Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Multimedia, Communications & Networking, Audio

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC24HJ128GP506A-I/PT
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
