Microchip PIC24FJ256GB106-I/MR PIC24FJ256GB106-I/MR 16 Bit Microcontroller General Purpose PIC24 Family PIC24FJ GB Series Microcontrollers

The PIC24FJ256GB106-I/MR is a high-performance PIC24F family eXtreme low power technology 16-bit Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of performance at 3.3V with Basic code-guard security. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 256kB of addressable program memory size, 16384bytes of data memory size, 52 general-purpose I/O pins and 16-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 2 to 3.6V.

• XLP Technology for Sleep current at low as 20nA
• Brown-out reset (BOR)
• Low voltage detection (LVD)
• Power on reset (POR)
• Watch dog timer (WDT)
• Three comparators
• Charge time measurement unit (CTMU)
• Peripheral pin select (PPS)
• full-speed USB 2.0 Device/Host/OTG
• Local interconnect network (LIN)
• IrDA
• Parallel master port
• Twenty-three 16-bit timers
• Eleven 32-bit timers
• Programmable Cyclic Redundancy Check (CRC)

Applications

Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Multimedia, Communications & Networking, Audio

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC24FJ256GB106-I/MR
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

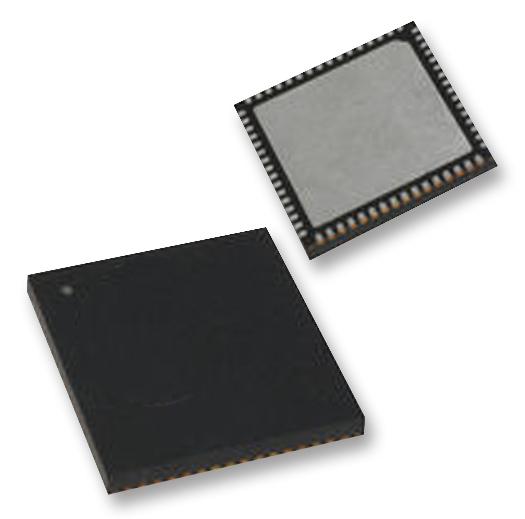

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
