Description

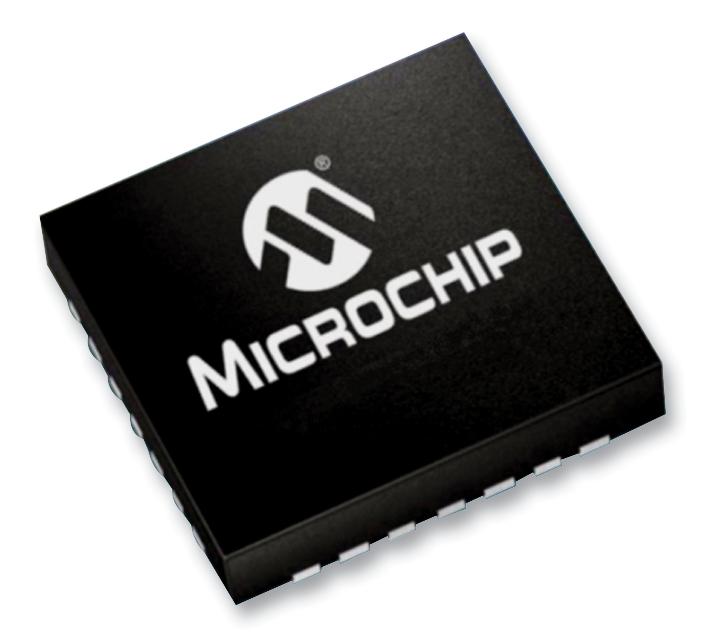

The PIC24FJ256GA702-I/MV from Microchip is a 16bit general purpose microcontroller with 256Kbyte flash and 16Kbyte RAM in 28 pin UQFN package. It offers various power down modes to keep the currents very low. The device features in-circuit serial programming (ICSP) and in-circuit emulation (ICE) via two pins, power-on reset (POR), brown-out reset (BOR) and oscillator start-up timer (OST), programmable low voltage detect (LVD), flexible watchdog timer (WDT) with its own RC oscillator for reliable operation. This microcontroller has three 16bit timers, two I2C, three variable width SPI, two LIN-USART/IrDA, twelve EPMP (address/data line), two configurable logic cell (CLC), real time clock and calendar (RTCC) and JTAG interfaces. Sleep and idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up.
- Modified harvard architecture up to 16MIPS operation at 32MHz and 8MHz internal oscillator
- 22 GPIO, 6 DMA channels, 10-channel 10/12bit A/D channels and 3 comparators
- Cyclic redundancy check (CRC), 1/3 MCCP 6-output/2-output and 3/3 IC/OC PWM
- Charge time measurement unit (CTMU) interface
- 17bit x 17bit single cycle hardware fractional/integer multiplier
- Supply voltage range from 2V to 3.6V
- Programmable reference clock output
- Fail-safe clock monitor operation
- High current sink/source 18mA/18mA on all I/O pins
- Operating ambient temperature range from -40°C to +85°C
Applications
Embedded Design & Development
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Product Range: PIC24 Family PIC24FJ GA Series Microcontrollers |
Device Core: PIC24 |
Data Bus Width: 16 bit |
Operating Frequency Max: 32MHz |
Program Memory Size: 256KB |
No. of Pins: 28Pins |
IC Case / Package: UQFN |
No. of I/O's: 22I/O's |
Interfaces: I2C, SPI, UART |
RAM Memory Size: 16KB |
ADC Channels: 10Channels |
ADC Resolution: 10Bit, 12Bit |
Supply Voltage Min: 2V |
Supply Voltage Max: 3.6V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 85°C |
IC Mounting: Surface Mount |
MCU Series: PIC24FJ GA |
MCU Family: PIC24 |
Qualification: - |
MSL: MSL 1 - Unlimited |
Other details
Brand | MICROCHIP |
Part Number | PIC24FJ256GA702-I/MV |
Quantity | Each |
Technical Data Sheet EN |
