Description

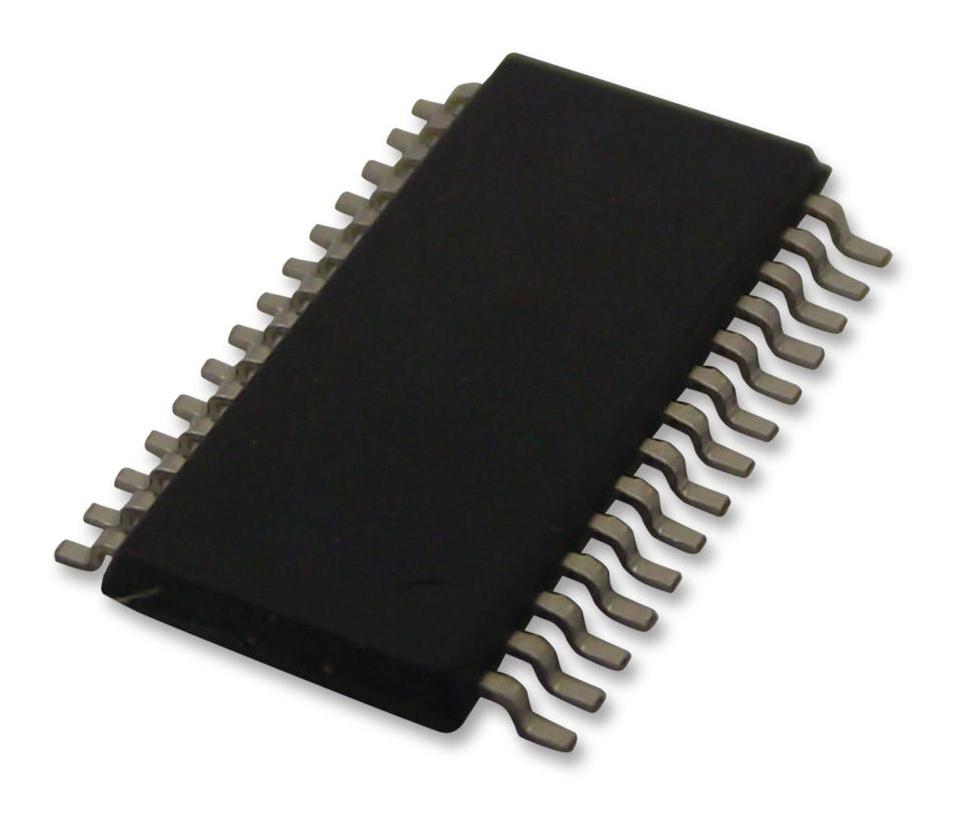

The PIC24FJ128GA202-I/SS is a 16-bit flash General Purpose Microcontroller with cryptographic engine, ISO 7816 and XLP technology. The PIC24F 16-bit microcontroller featuring integrated Hardware Crypto module and eXtreme low power. This family also includes 128kB flash, 8kB RAM and advanced peripherals. The combination of features makes the part ideally suited for low power embedded security applications.
- Cryptographic engine - Supports ECB, CBC, OFB, CTR and CFB128 modes and programmatically secure
- Extreme low-power - Extreme low-power current consumption for deep sleep
- High-performance CPU - 17-bit x 17-bit single-cycle hardware fractional/integer multiplier
- Analogue - Three on-chip programmable voltage references
- Peripherals - Hardware real-time clock/calendar (RTCC) and three 3-wire/4-wire SPI modules
- 20-year Minimum flash data retention
- Self-programmable under software control
- Programmable reference clock output
- In-Circuit Serial Programming� (ICSP�) and In-Circuit Emulation (ICE) via 2 pins
- JTAG programming and boundary scan support
- Fail-safe clock monitor (FSCM) operation
- Programmable high/low-voltage detect (HLVD)
- Flexible watchdog timer (WDT) with its own RC oscillator for reliable operation
Applications
Security, Computers & Computer Peripherals, Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC24 Family PIC24FJ GA Series Microcontrollers |
| Device Core: PIC24 |
| Data Bus Width: 16 bit |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 128KB |
| No. of Pins: 28Pins |
| IC Case / Package: SSOP |
| No. of I/O's: 21I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 8KB |
| ADC Channels: 10Channels |
| ADC Resolution: 10Bit, 12Bit |
| Supply Voltage Min: 2V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Series: PIC24FJ GA |
| MCU Family: PIC24 |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC24FJ128GA202-I/SS |
| Quantity | Each |
| Technical Data Sheet EN |  |
