Microchip PIC24F32KA301-I/SS PIC24F32KA301-I/SS 16 Bit Microcontroller PIC24 Family PIC24FV KA Series Microcontrollers bit 32 MHz

The PIC24F32KA301-I/SS is a 16-bit 20-pin general purpose Flash Microcontroller with XLP and nanoWatt XLP technology for eXtreme low power consumption. Designed for power constrained and battery powered applications. The microcontroller features unique peripherals like DSBOR, DSWDT and RTCC which run in deep sleep mode for industry leading low power performance.

• Power management modes - Run, doze, idle, sleep and deep sleep
• High-performance CPU - Modified Harvard architecture and up to 16 MIPS operation at 32MHz
• Peripheral - Hardware real-time clock and calendar (RTCC) and multiple serial communication modules
• Analogue - Dual rail-to-rail analogue comparators with programmable input/output configuration
• Low-power wake-up sources and supervisors
• System frequency range declaration bits
• Standard watchdog timer (WDT) with on-chip, low-power RC oscillator for reliable operation
• Programmable high/low-voltage detect (HLVD)
• Standard brown-out reset (BOR) with 3 programmable trip points that can be disabled in sleep
• High-current sink/source (18mA) on all I/O pins
• Programmable reference clock output
• Self-programmable under software control
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) and In-Circuit Debug (ICD) via 2 pins
• Standard voltage range flash program memory

Applications

Power Management, Industrial, Computers & Computer Peripherals, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC24F32KA301-I/SS
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

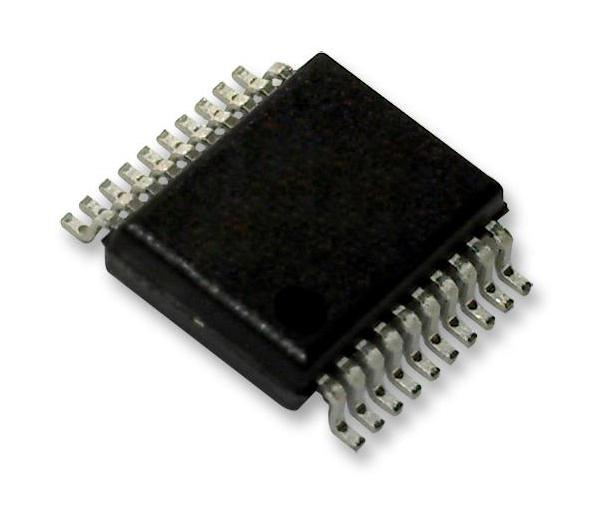

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
