Description

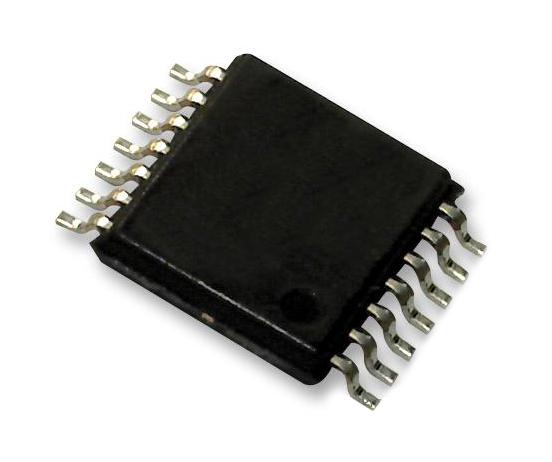

The PIC24F04KA200-I/ST is a high-performance PIC24F family eXtreme low power technology 16-bit Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of performance at 3.3V with Basic code-guard security. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 4kB of addressable program memory size, 512bytes of data memory size, 12 general-purpose I/O pins and 7-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 1.8 to 3.6V.
- XLP Technology for Sleep current at low as 20nA
- Brown-out reset (BOR)
- Low voltage detection (LVD)
- Power on reset (POR)
- Watch dog timer (WDT)
- nanoWatt XLP technology
- Two comparators
- Internal voltage reference
- Charge time measurement unit (CTMU)
- Local interconnect network (LIN)
- IrDA
- Parallel port GPIO
- Three 16-bit timers
- One 32-bit timers
Applications
Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Multimedia, Communications & Networking, Audio
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC24 Family PIC24FV KA Series Microcontrollers |
| Device Core: PIC24 |
| Data Bus Width: 16 bit |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 4KB |
| No. of Pins: 14Pins |
| IC Case / Package: TSSOP |
| No. of I/O's: 12I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 512Byte |
| ADC Channels: 7Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 1.8V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Series: PIC24FV KA |
| MCU Family: PIC24 |
| Qualification: AEC-Q100 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC24F04KA200-I/ST |
| Quantity | Each |
| Technical Data Sheet EN |  |
