Description

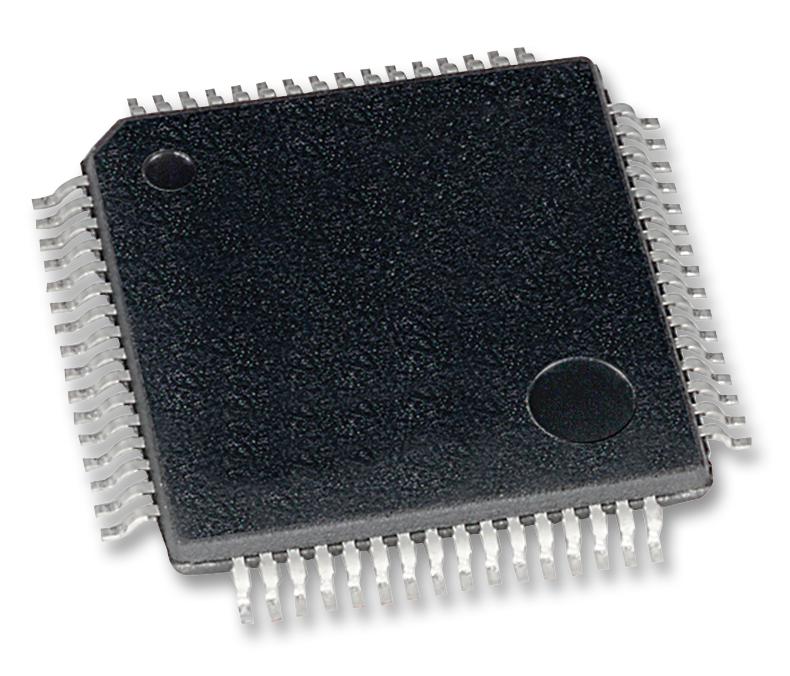

The PIC18LF8722-I/PT is a baseline PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product utilize a 12-bit program word and provide the right amount of features including 128kB of addressable program memory size, 3936bytes of data memory size, 70 general-purpose I/O pins, two comparators and 16-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 40MHz wide operating voltage of 2 to 5.5V.
- Simple 33 (12-bit wide) instruction set
- 2 level hardware stack
- 1 (8-bit) file select register
- Smallest form factor
- Programmable brown-out reset (BOR)
- Programmable low voltage detection
- Power on reset (POR)
- 32kHz to 8MHz internal oscillator
- Watch dog timer (WDT)
- Two 8-bit digital timers
- Three 16-bit digital timers
- 2x Capture/Compare/PWM (CCP)
- 3x Enhanced Capture/Compare/PWM (ECCP)
- Local interconnect network (LIN)
- In-Circuit Serial Programming� (ICSP�)
- 1024bytes of EEPROM data memory
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Product Range: PIC18 Family PIC18F87xx Series Microcontrollers |
Device Core: PIC18 |
Operating Frequency Max: 40MHz |
Program Memory Size: 128KB |
No. of Pins: 80Pins |
IC Case / Package: TQFP |
No. of I/O's: 70I/O's |
Interfaces: EUSART, I2C, PSP, SPI |
RAM Memory Size: 3.84KB |
ADC Channels: 16Channels |
ADC Resolution: 10Bit |
Supply Voltage Min: 2V |
Supply Voltage Max: 5.5V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 85°C |
IC Mounting: Surface Mount |
MCU Family: PIC18 |
MCU Series: PIC18F87xx |
Qualification: - |
MSL: MSL 1 - Unlimited |
Other details
Brand | MICROCHIP |
Part Number | PIC18LF8722-I/PT |
Quantity | Each |
Technical Data Sheet EN |
