High Performance RISC CPU. Extreme Low-Power Management with nanoWatt XLP�. Flexible Oscillator Structure. Special Microcontroller Features. This family offers the advantages of all PIC18 microcontrollers - namely, high computational performance at an economical price - with the addition of high-endurance, Flash program memory. On top of these features, the PIC18(L)F2X/4XK22 family introduces design enhancements that make these microcontrollers a logical choice for many highperformance, power sensitive applications.
- C Compiler optimized architecture/instruction set
- Data EEPROM to 1024 bytes
- Linear program memory addressing to 64 Kbytes
- Linear data memory addressing to 4 Kbytes
- Up to 16 MIPS operation
- 16-bit wide instructions, 8-bit wide data path
- Priority levels for interrupts
- 31-level, software accessible hardware stack
- 8 x 8 Single-Cycle Hardware Multiplier
- Precision 16 MHz internal oscillator block
- Full 5.5V operation
- 24/35 I/O pins and 1 input-only pin
Product details
| Product Range:
PIC18 Family PIC18LF26Kxx Series Microcontrollers
|
| Device Core:
PIC18
|
| Operating Frequency Max:
64MHz
|
| Program Memory Size:
64KB
|
| No. of Pins:
28Pins
|

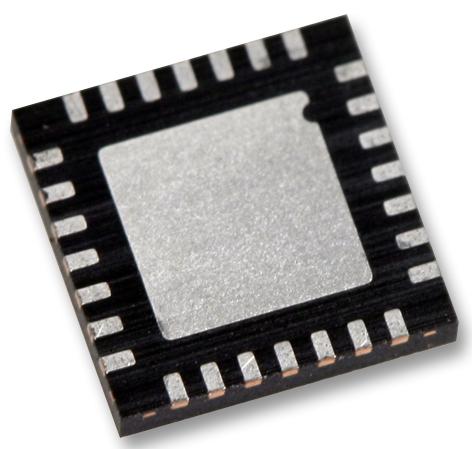

| IC Case / Package:
QFN
|
| No. of I/O's:
25I/O's
|
| Interfaces:
EUSART, I2C, SPI
|
| RAM Memory Size:
3.8KB
|
| ADC Channels:
17Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
PIC18
|
| MCU Series:
PIC18LF26Kxx
|
| Qualification:
-
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
MICROCHIP |
| Part Number |
PIC18LF26K22-E/ML |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
