| ₹ 734.79 includes GST and import duties. | |
| B2B customers can avail ₹ 112.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

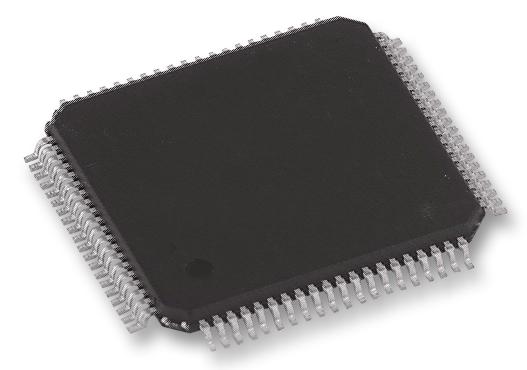

The PIC18F87J10-I/PT is a high-performance PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of processing power. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 128kB of addressable program memory size, 3936bytes of data memory size, 66 general-purpose I/O pins, two comparators and 15-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 40MHz wide operating voltage of 2 to 3.6V.
- 83 (16-bit wide) powerful C-optimized
- 32 level hardware stack
- 1 (8-bit) file select register
- Integrated 8x8 hardware multiply
- Brown-out reset (BOR)
- Low voltage detection
- Power on reset (POR)
- 32kHz internal oscillator
- Watch dog timer (WDT)
- Two 8-bit digital timers
- Three 16-bit digital timers
- 2x Capture/Compare/PWM (CCP)
- 3x Enhanced Capture/Compare/PWM (ECCP)
- Local interconnect network (LIN)
- In-Circuit Serial Programming� (ICSP�)
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC18 Family PIC18F J1x Series Microcontrollers |
| Device Core: PIC18 |
| Operating Frequency Max: 40MHz |
| Program Memory Size: 128KB |
| No. of Pins: 80Pins |
| IC Case / Package: TQFP |
| No. of I/O's: 66I/O's |
| Interfaces: EUSART, I2C, PSP, SPI |
| RAM Memory Size: 3.84KB |
| ADC Channels: 15Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC18 |
| MCU Series: PIC18F J1x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F87J10-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 720.09 |
| 3-5 | ₹ 712.75 |
| 5-10 | ₹ 698.05 |
| 10+ | ₹ 683.35 |
Bulk discount will be automatically applied during checkout based on quantity.
