Description

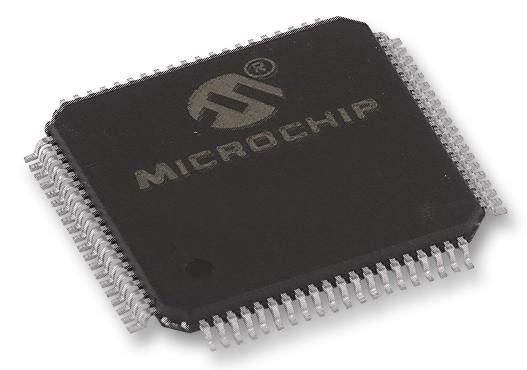

The PIC18F8585-I/PT is a high-performance PIC18 family 8-bit powerful yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with up to 10 MIPS of processing power. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 48kB of addressable program memory size, 3328bytes of data memory size, 69 general-purpose I/O pins and 16-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 40MHz wide operating voltage of 2 to 5.5V.
- Source code compatible with the PIC16 and PIC17 instruction sets
- 31-level, software accessible hardware stack
- 8 x 8 Single-cycle hardware multiplier
- MPLAB In-circuit debug (ICD)
- ECAN
- Programmable code protection
- Power on reset (POR)
- Power-up timer (PWRT)
- Oscillator start-up timer (OST)
- Watchdog timer (WDT)
- Power saving SLEEP mode
- Two 8-bit digital timer
- Three 16-bit digital timers
- In-Circuit Serial Programming� (ICSP�)
- 1x Capture/Compare/PWM (CCP)
- 1024bytes of EEPROM data memory
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Product details
| Product Range: PIC18 Family PIC18F85xx Series Microcontrollers |
| Device Core: PIC18 |
| Operating Frequency Max: 40MHz |
| Program Memory Size: 48KB |
| No. of Pins: 80Pins |
| IC Case / Package: TQFP |
| No. of I/O's: 69I/O's |
| Interfaces: AUSART, ECAN, I2C, PSP, SPI |
| RAM Memory Size: 3KB |
| ADC Channels: 16Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 4.2V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC18 |
| MCU Series: PIC18F85xx |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F8585-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
