Microchip PIC18F67K22-I/PTRSL PIC18F67K22-I/PTRSL 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 128 KB Pins

The PIC18F67K22-I/PTRSL is a baseline PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product utilize a 12-bit program word and provide the right amount of features including 128kB of addressable program memory size, 3862bytes of data memory size, 53 general-purpose I/O pins, three comparators and 16-channel 12-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 64MHz wide operating voltage of 1.8 to 5.5V.

• Simple 33 (12-bit wide) instruction set
• 2 level hardware stack
• 1 (8-bit) file select register
• Smallest form factor
• Programmable brown-out reset (BOR)
• Programmable low voltage detection
• Power on reset (POR)
• 32kHz to 16MHz internal oscillator
• Hardware RTCC
• Watch dog timer (WDT)
• Internal voltage reference (Bandgap)
• Charge time measurement unit (CTMU)
• Six 8-bit digital timers
• Five 16-bit digital timers
• 7x Capture/Compare/PWM (CCP)
• 3x Enhanced Capture/Compare/PWM (ECCP)
• 16x Capacitive touch channels
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• 1024bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F67K22-I/PTRSL
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN

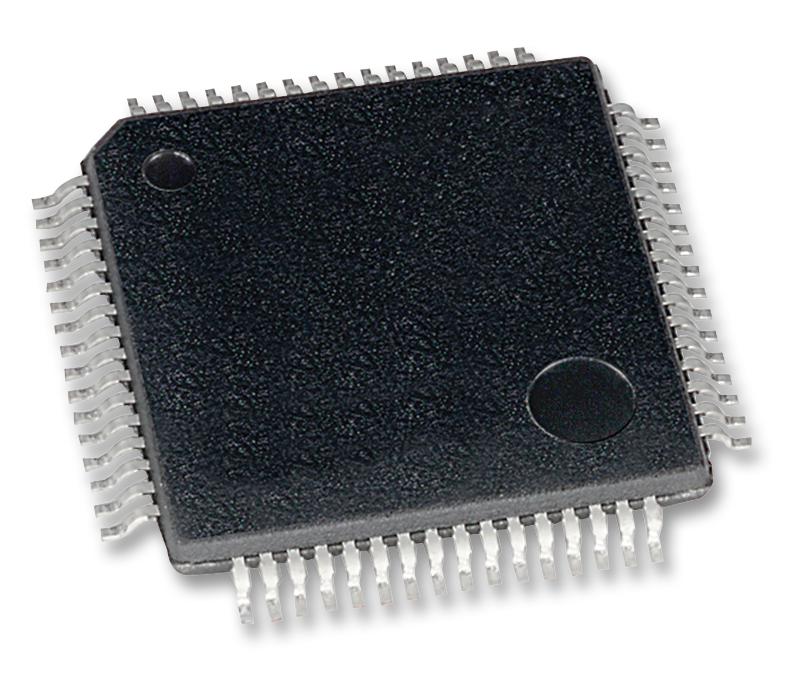

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
