Description

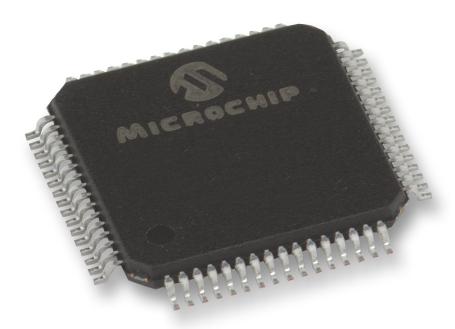

The PIC18F6722-I/PT is an 8bit enhanced flash microcontroller with nanoWatt technology in 64 pin TQFP package. This device is an ideal solution for large low power (nanoWatt) and connectivity applications. The device has three programmable external interrupts, master synchronous serial port (MSSP) and programmable 16 level high/low voltage detection (HLVD) modules.
- 128KB of flash memory
- 3936bytes of RAM and 1024bytes of EEPROM memory
- 54 I/O pins
- 10bit, 12 channel A/D converter
- Operating frequency from DC to 40MHz
- Two SPI, two I2C and two EUSART interfaces
- Wide operating voltage range from 4.2V to 5.5V
- Operating temperature range from -40°C to 85°C
- Single supply 5V in-circuit serial programming (ICSP) via two pins
- Dual analogue comparators with input multiplexing
Embedded Design & Development, Metering, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | PIC18F6722-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
