Description

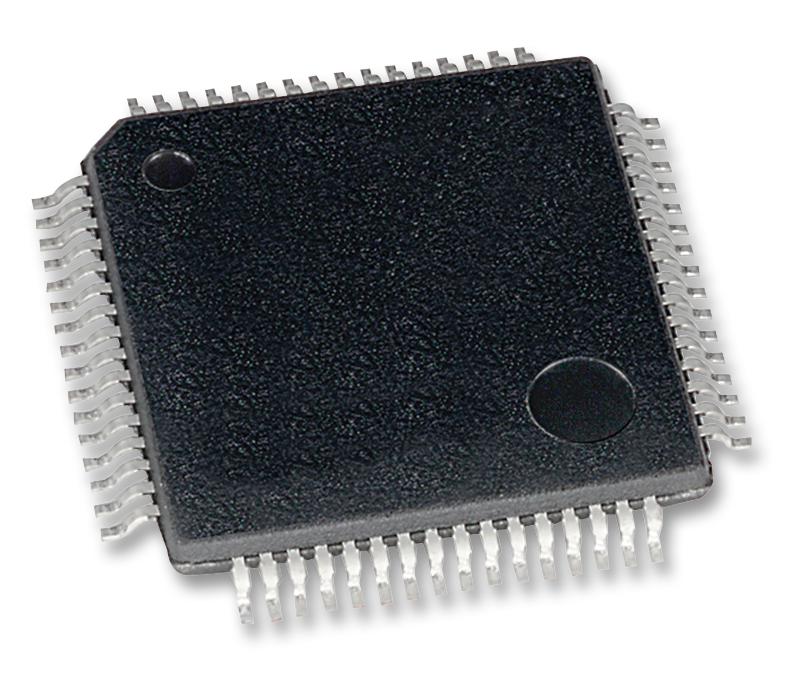

The PIC18F66K80-I/PT is an enhanced Flash Microcontroller with nanoWatt XLP technology and ECAN� featuring eXtreme low power consumption. New features in microcontroller include low sleep current for low power application, 1.8V to 5.5V operating voltage for building control and elevator control application, timers/enhanced compare/capture/PWMs for precision timing control, 12-bit ADC for advance analogue interface and charge time measurement unit for easy capacitive touch user interface. Charge time measurement unit (CTMU) supports touch sensing and advanced sensing applications.
- 20nA Sleep mode (watch webinar)
- 300nA Watch dog timer operation in sleep modes
- Integrated ECAN� conforming to CAN 2.0B active specification
- Extreme low power sleep mode ideal for battery applications
- 4 Capture/compare/PWM modules and 1 enhanced capture/compare/PWM modules
- 1 MSSP serial ports for SPI or I²C� communication
- 2 Enhanced USART modules
- Two analogue comparators
- Self programming flash supports 10k erase/write cycles and 20-year retention
- DeviceNet� data byte filter support
- Six programmable receive/transmit buffers
- Three dedicated transmit buffers with prioritization
- Automatic remote frame handling
- Self-programmable under software control
- Priority levels for interrupts
Automotive, Automation & Process Control, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
Brand | MICROCHIP |
Part Number | PIC18F66K80-I/PT |
Quantity | Each |
Technical Data Sheet EN | ![]() |
Product Change Notice EN | ![]() |
