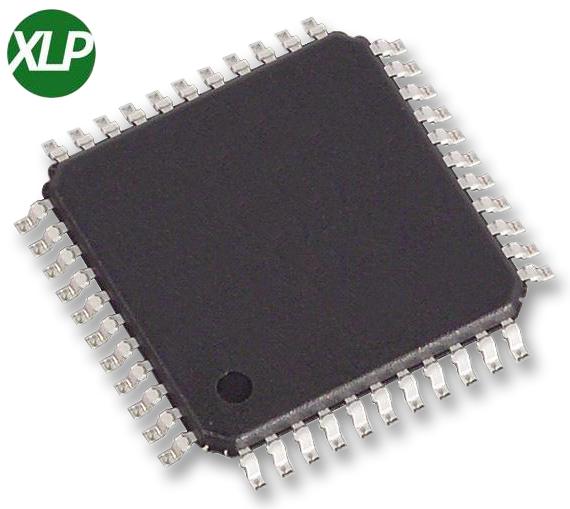

Microchip PIC18F46K20-E/PT PIC18F46K20-E/PT 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz KB 44 Pins

The PIC18F46K20-E/PT is a baseline PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product utilize a 12-bit program word and provide the right amount of features including 64kB of addressable program memory size, 3936bytes of data memory size, 36 general-purpose I/O pins, two comparators and 13-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 64MHz wide operating voltage of 1.8 to 3.6V.

• Simple 33 (12-bit wide) instruction set
• 2 level hardware stack
• 1 (8-bit) file select register
• Smallest form factor
• Programmable brown-out reset (BOR)
• Programmable low voltage detection
• Power on reset (POR)
• 32kHz to 16MHz internal oscillator
• Watch dog timer (WDT)
• Internal voltage reference (Bandgap)
• One 8-bit digital timer
• Three 16-bit digital timers
• 1x Capture/Compare/PWM (CCP)
• 1x Enhanced Capture/Compare/PWM (ECCP)
• Local interconnect network (LIN)
• 10x Capacitive touch channels
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• 256bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F46K20-E/PT
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
