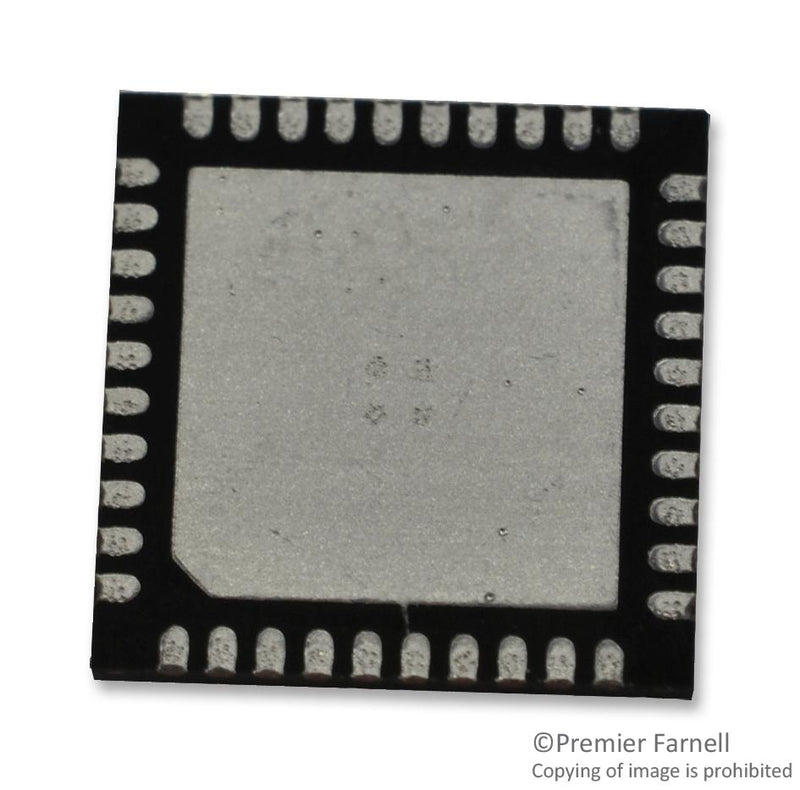

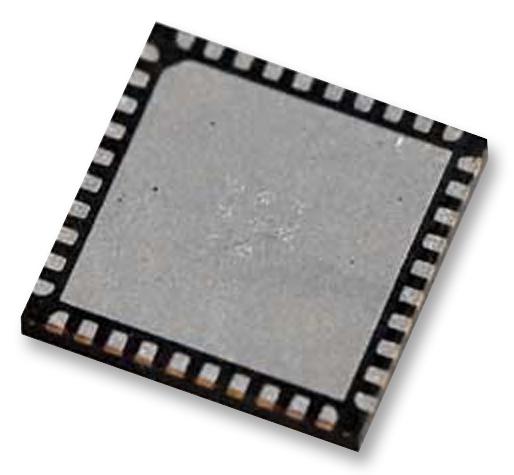

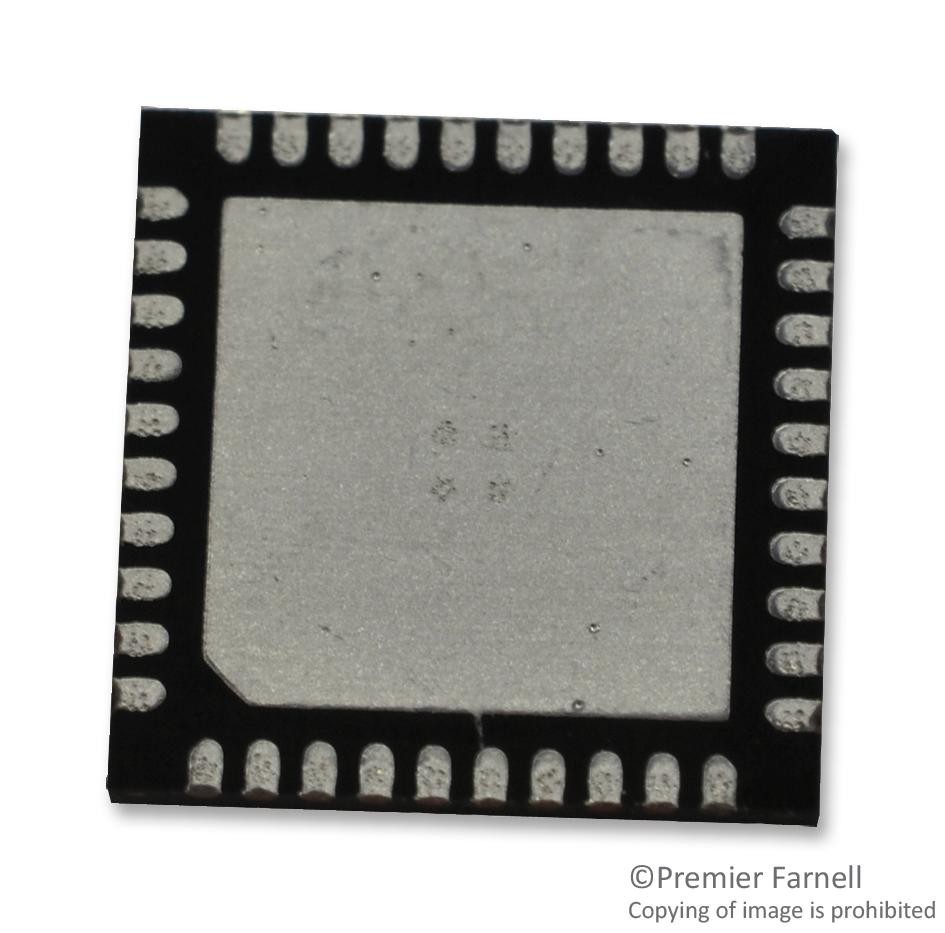

Microchip PIC18F45K50-I/MV PIC18F45K50-I/MV 8 Bit MCU Flash PIC18 Family PIC18F K5x Series Microcontrollers 48 MHz 32 KB 40 Pins

The PIC18F45K50-I/MV is a high-performance PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of processing power with benchmark nanoWatt XLP extreme low power consumption. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 32kB of addressable program memory size, 2048bytes of data memory size, 36 general-purpose I/O pins, two comparators, 25-channel 10-bit analog-to-digital (A/D) converter and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 48MHz wide operating voltage of 1.8 to 5.5V.

• 83 (16-bit wide) powerful C-optimized
• 32 level hardware stack
• 1 (8-bit) file select register
• Integrated 8x8 hardware multiply
• Programmable brown-out reset (BOR)
• Programmable low voltage detection
• 16MHz internal oscillator
• Watch dog timer (WDT)
• Internal voltage reference (Bandgap)
• Charge time measurement unit (CTMU)
• Two 8-bit digital timers
• Two 16-bit digital timers
• 1x Enhanced Capture/Compare/PWM (ECCP)
• full-speed USB 2.0
• 25x Capacitive touch channels
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• 256bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F45K50-I/MV
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
