Description

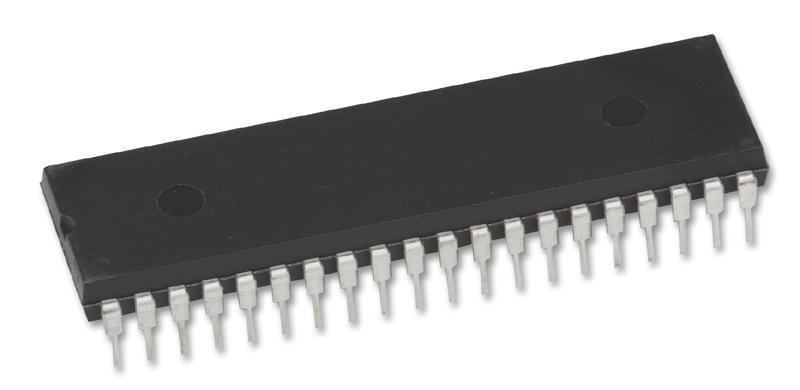

The PIC18F452-I/P is a high-performance Enhanced Flash Microcontroller with 8 channels of 10-bit Analogue-to-digital (A/D) converter. The PIC18F452 features a C compiler friendly development environment, 256 bytes of EEPROM, self-programming, an ICD, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPIâ�¢) or the 2-wire Inter-Integrated Circuit (I²Câ�¢) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, data acquisition, power conditioning and environmental monitoring.
- High performance RISC CPU - Up to 10MIPs operation & 16-bit wide instructions, 8-bit wide data path
- Peripheral - 3 external interrupt pins, master synchronous serial port (MSSP) module
- Analogue - Programmable low voltage detection (PLVD) and programmable brown-out reset (BOR)
- Flash/data EEPROM retention of >40 years
- Self-reprogrammable under software control
- Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving sleep mode
- Single supply 5V In-Circuit Serial Programming� (ICSP�) via two pins
- In-Circuit Debug (ICD) via two pins
- CMOS technology - Low power, high speed flash/EEPROM technology
Applications
Sensing & Instrumentation, Test & Measurement, Power Management, Communications & Networking, Consumer Electronics, Audio, Imaging, Video & Vision, Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC18 Family PIC18F45xx Series Microcontrollers |
| Device Core: PIC18 |
| Operating Frequency Max: 40MHz |
| Program Memory Size: 32KB |
| No. of Pins: 40Pins |
| IC Case / Package: DIP |
| No. of I/O's: 34I/O's |
| Interfaces: AUSART, I2C, PSP, SPI |
| RAM Memory Size: 1.5KB |
| ADC Channels: 8Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 4.2V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Through Hole |
| MCU Family: PIC18 |
| MCU Series: PIC18F45xx |
| Qualification: - |
| MSL: - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F452-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
