Microchip PIC18F4420-I/P PIC18F4420-I/P 8 Bit MCU Flash PIC18 Family PIC18F44xx Series Microcontrollers 40 MHz 16 KB Pins

The PIC18F4420-I/P is a high-performance PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of processing power. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 16kB of addressable program memory size, 768bytes of data memory size, 36 general-purpose I/O pins, two comparators and 13-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 40MHz wide operating voltage of 2 to 5.5V.

• 83 (16-bit wide) powerful C-optimized
• 32 level hardware stack
• 1 (8-bit) file select register
• Integrated 8x8 hardware multiply
• Programmable brown-out reset (BOR)
• Programmable low voltage detection
• Power on reset (POR)
• 32kHz to 8MHz internal oscillator
• Watch dog timer (WDT)
• One 8-bit digital timer
• Three 16-bit digital timers
• 1x Capture/Compare/PWM (CCP)
• 1x Enhanced Capture/Compare/PWM (ECCP)
• Local interconnect network (LIN)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• 256bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F4420-I/P
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

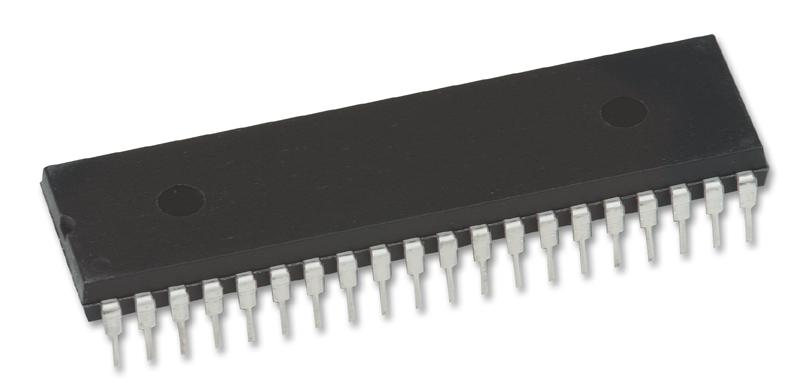

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
