Description

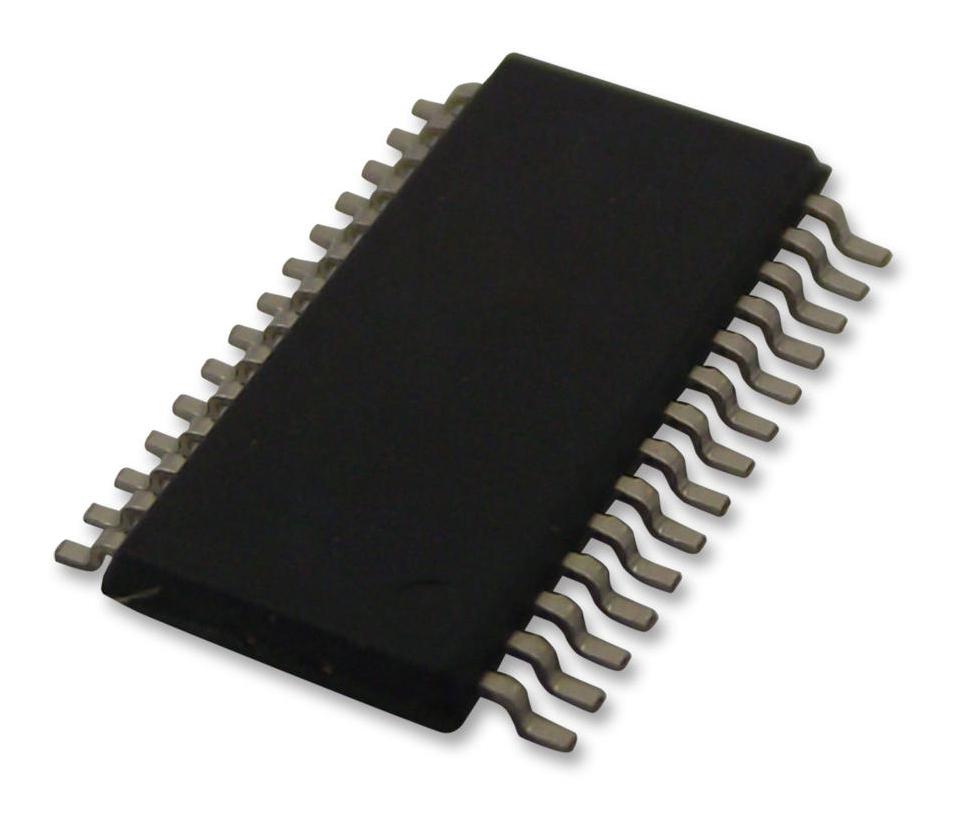

The PIC18F26K80-I/SS is a 64kB Enhanced Flash Microcontroller with ECAN� and nanoWatt XLP technology. The PIC18F26K80 include low sleep current for low power application, 1.8 to 5.5V operating voltage for building control, elevator control and industrial applications, timers/enhanced compare/capture/PWMs for precision timing control, 12-bit ADC for advance analogue interface and charge time measurement unit for easy capacitive touch user interface. This family combines the traditional advantages of all PIC18 microcontrollers - namely, high computational performance and a rich feature set - with an extremely competitive price point. These features make the PIC18F26K80 family a logical choice for many high-performance applications where price is a primary consideration.
- 20nA Sleep mode (watch webinar)
- 300nA Watch dog timer operation in sleep modes
- Integrated ECAN� conforming to CAN 2.0B active specification
- 1 MSSP serial ports for SPI or I²C� communication
- 2 Enhanced USART modules
- Two analogue comparators
- Self programming flash supports 10k erase/write cycles and 20-year retention
- Self-programmable under software control
- Priority levels for interrupts
- 8 x 8 Single-cycle hardware multiplier
- In-Circuit Serial Programming� (ICSP�) via two pins
- In-Circuit Debug via two pins
Automotive, Automation & Process Control, Industrial, Computers & Computer Peripherals
Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
Brand | MICROCHIP |
Part Number | PIC18F26K80-I/SS |
Quantity | Each |
Technical Data Sheet EN | ![]() |
Product Change Notice EN | ![]() |
CAD CadSoft_EAGLE EN | ![]() |
