PIC18F25Q10 microcontrollers are optimized for robust, real time control and sensor nodes with integrated intelligent analog, configurable peripherals and 5V operation for increased noise immunity. They are well suited for a broad range of applications including industrial control, consumer, automotive, touch sensing and Internet of Things (IoT).
- PIC18 core with 83 instructions, 31 stack levels
- Internal 64MHz oscillator
- 32KB Flash Program Memory with self read/write capability
- 2048 Bytes Data SRAM Memory
- 256 Bytes of EEPROM
- 10-bit ADC with computation, 24 channels
- 1 x 5-bit DAC
- 2 x Comparators
- Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels
- Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
- 1 x Zero-Cross Detect
- 1 x I2C/SPI
- 1 x EUSART with LIN support
- CRC with Memory Scan
- Windowed Watchdog Timer (WWDT)
- 1 x Hardware Limit Timer (HLT)
- 1 x Complementary Waveform Generator
- 2 x standalone 10-bit PWM modules
- 2 x Capture/Compare/PWM modules
- In-Circuit Debug Integrated On-Chip
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MICROCHIP |
| Part Number |
PIC18F25Q10-I/SP |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

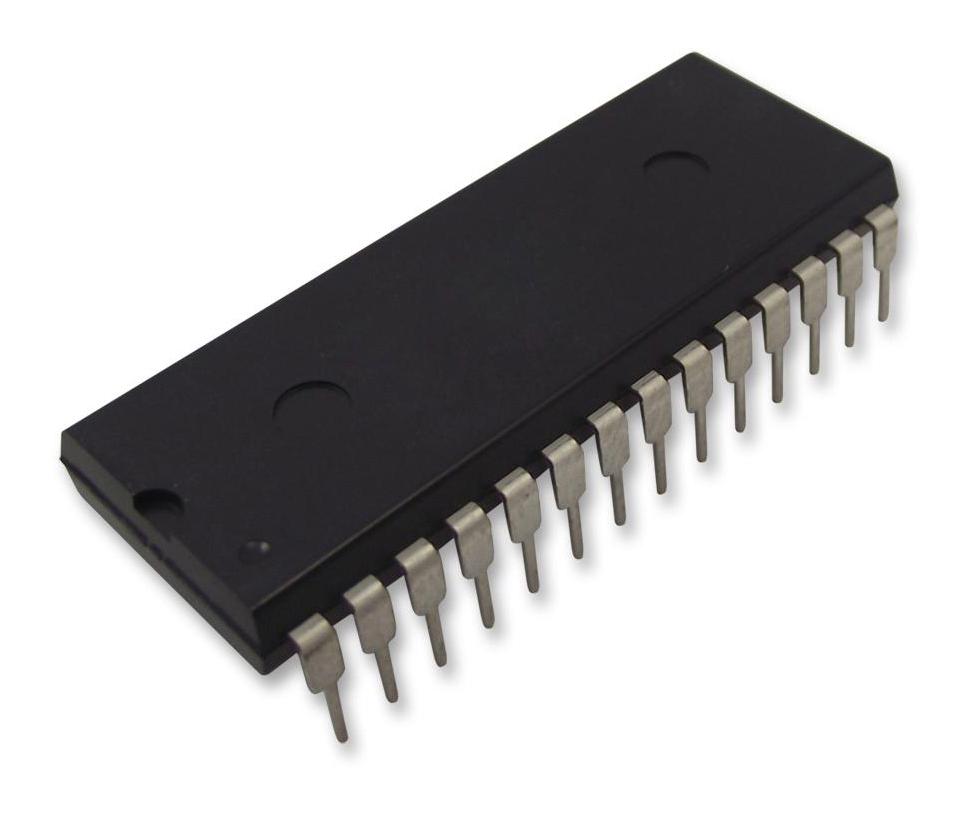

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
