Microchip PIC18F25K22-I/SO PIC18F25K22-I/SO 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 32 KB 28 Pins

The PIC18F25K22-I/SO is a 8-bit low-power High-performance Microcontroller with XLP technology. This family introduces design enhancements that make these microcontrollers a logical choice for many high performance, power sensitive applications. The flash program memory is readable, writable and erasable during normal operation over the entire VDD range. A read from program memory is executed one byte at a time. A write to program memory is executed on blocks of 64bytes at a time. Program memory is erased in blocks of 64bytes at a time. A bulk erase operation cannot be issued from user code. The data EEPROM is a non-volatile memory array, separate from the data RAM and program memory, which is used for long-term storage of program data. It is not directly mapped in either the register file or program memory space but is indirectly addressed through the special function registers (SFRs). The EEPROM is readable and writable during normal operation over the entire VDD range.

• C compiler optimized architecture/instruction set
• Data EEPROM to 1024 bytes
• Linear program memory addressing to 64kB
• Linear data memory addressing to 4kB
• Up to 16 MIPS operation
• 16-bit wide instructions and 8-bit wide data path
• Priority levels for interrupts
• Extreme low-power management with nanoWatt XLPâ�¢
• Allows for safe shutdown if peripheral clock stops
• Self-reprogrammable under software control
• Power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)
• Programmable brown-out reset (BOR)
• Extended watchdog timer (WDT) with on-chip oscillator and software enable
• Programmable high/low voltage detection (PLVD) module

Applications

Sensing & Instrumentation, Communications & Networking, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F25K22-I/SO
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

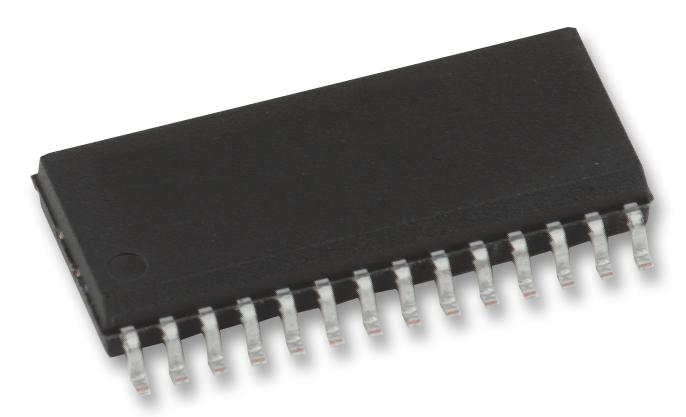

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
