Description

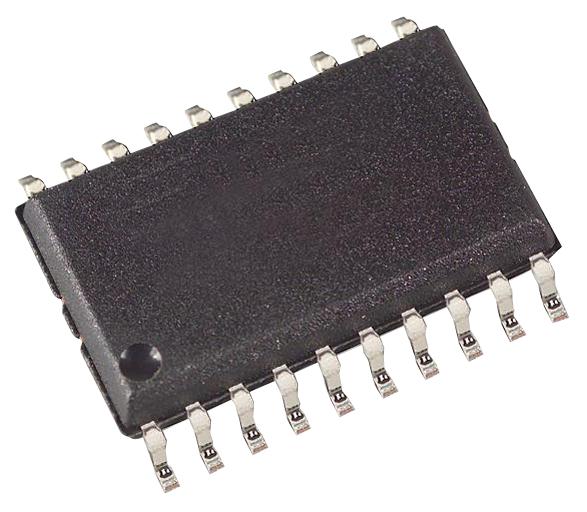

The PIC18F14K22-I/SO is a 8-bit Flash Microcontroller with nanoWatt XLP technology. This new family of devices offer all of the advantages of the well recognized PIC18F high performance MCUs, C compiler optimized architecture and an industry leading peripheral set now available in a low pin-count option. This new 20-pin product includes a 16MHz precision internal oscillator which can be used with the standard 4X PLL to produce 16 MIPS of performance (64MHz at 3V). Standard analogue peripherals include 12 channels of 10-bit A/D, dual rail-rail comparators with improved input/output multiplexing and an on-chip selectable fixed voltage reference. Digital peripherals include an enhanced capture/compare/PWM (ECCP+) module with PWM steering and a master synchronous serial port (MI²C, SPI) module with software controllable address masking.
- C compiler optimized architecture
- 256-byte Data EEPROM
- Extreme low-power management
- Flexible oscillator structure
- Precision 16MHz internal oscillator block
- Four crystal modes up to 64MHz
- Fail-safe clock monitor
- Allows for safe shutdown if peripheral clock stops
- Two-speed oscillator start-up
- Self-reprogrammable under software control
- Power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)
- Programmable brown-out reset (BOR)
- Extended watchdog timer (WDT) with on-chip oscillator and software enable
- Enhanced capture/compare/PWM (ECCP) module with PWM output steering
- Master synchronous serial port (MSSP) module with two modes of operation
Applications
Sensing & Instrumentation, Power Management, Automotive
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC18 Family PIC18F K2x Series Microcontrollers |
| Device Core: PIC18 |
| Operating Frequency Max: 64MHz |
| Program Memory Size: 16KB |
| No. of Pins: 20Pins |
| IC Case / Package: SOIC |
| No. of I/O's: 18I/O's |
| Interfaces: EUSART, I2C, SPI |
| RAM Memory Size: 512Byte |
| ADC Channels: 12Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 1.8V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC18 |
| MCU Series: PIC18F K2x |
| Qualification: AEC-Q100 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F14K22-I/SO |
| Quantity | Each |
| Technical Data Sheet EN |  |
