Microchip PIC18F1320-I/SO PIC18F1320-I/SO 8 Bit MCU Flash PIC18 Family PIC18F13xx Series Microcontrollers 40 MHz KB 18 Pins

The PIC18F1320-I/SO is a 8-bit high-performance enhanced Flash Microcontroller with 7 channels of 10-bit Analogue-to-digital (A/D) converter. This microcontroller has nanoWatt technology, which features six enhanced power-managed software controlled modes, power consumption as low as 0.1µA in standby mode and a wide operating voltage range from 2 to 5.5V which makes this device ideal for battery managed applications. This device also encompasses a new low-current watchdog timer, a 2-speed start-up from a reset or sleep mode and a new fail-safe clock monitor that is used to detect an external clock failure. The PIC18F1320 features a C compiler friendly development environment, 128 bytes of EEPROM, self-programming, an ICD, capture/compare/PWM functions, Addressable Universal Asynchronous Receiver Transmitter (AUSART) and advanced low power oscillator controls.

• Two-speed oscillator start-up
• Oscillator - Secondary oscillator using timer1 at 32kHz and fail-safe clock monitor
• Peripheral - Three external interrupts and enhanced capture/compare/PWM (ECCP) module
• Flash/data EEPROM retention of >40 years
• Self-programmable under software control
• Priority levels for interrupts
• 8 x 8 Single-cycle hardware multiplier
• Extended watchdog timer (WDT) - Programmable period from 41ms to 131s
• Single-supply 5V In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins
• In-Circuit Debug (ICD) via two pins

Applications

Power Management, Sensing & Instrumentation, Test & Measurement, Communications & Networking, Consumer Electronics, Audio, Imaging, Video & Vision

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F1320-I/SO
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
Application Note EN

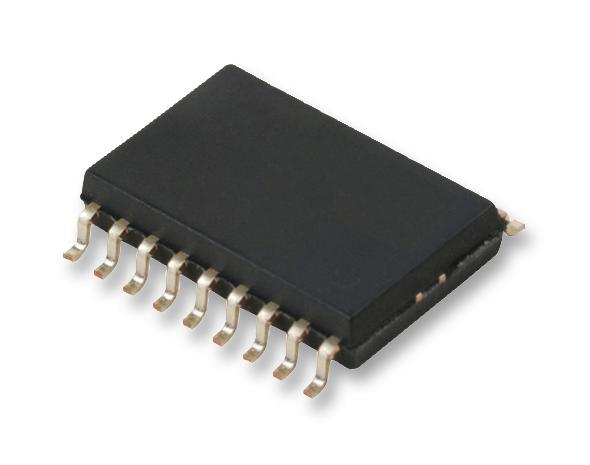

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
