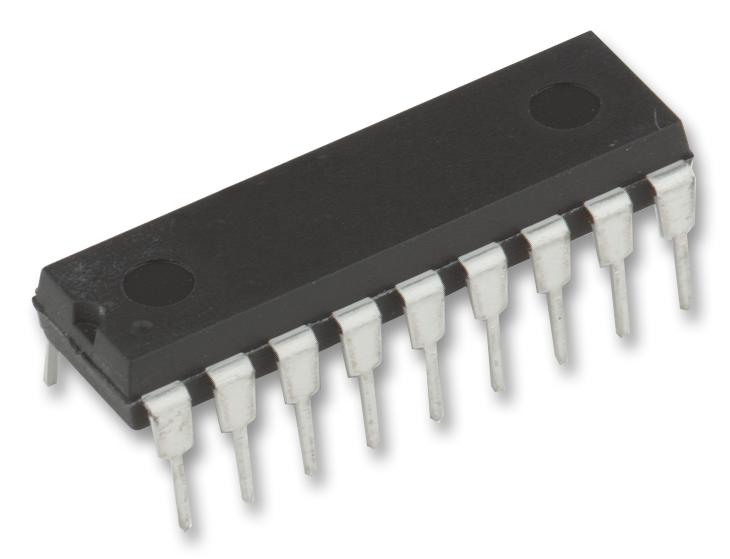

Microchip PIC18F1320-I/P PIC18F1320-I/P 8 Bit MCU Flash PIC18 Family PIC18F13xx Series Microcontrollers 40 MHz KB 18 Pins

The PIC18F1320-I/P is a baseline PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product utilize a 12-bit program word and provide the right amount of features including 8kB of addressable program memory size, 256bytes of data memory size, 16 general-purpose I/O pins7-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 40MHz wide operating voltage of 2 to 5.5V.

• Simple 33 (12-bit wide) instruction set
• 2 level hardware stack
• 1 (8-bit) file select register
• Smallest form factor
• 32kHz to 8MHz internal oscillator
• Watch dog timer (WDT)
• One 8-bit digital timer
• Three 16-bit digital timers
• 1x Enhanced Capture/Compare/PWM (ECCP)
• Local interconnect network (LIN)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• 256bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Other details

Brand	MICROCHIP
Part Number	PIC18F1320-I/P
Quantity	Each
Technical Data Sheet EN
Application Note EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
