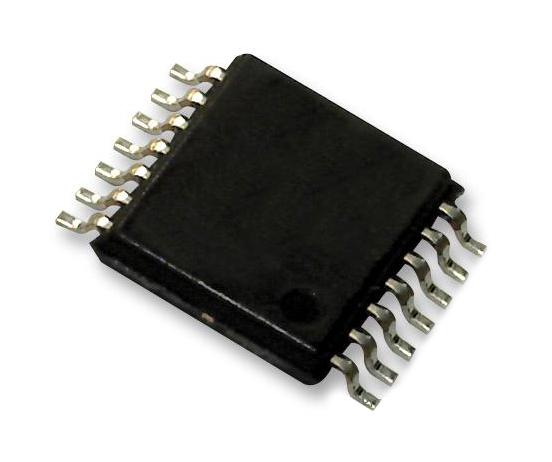

PIC18F05Q40 is a low-power, high-performance microcontroller with XLP technology. This 14-pin device for sensor and real-time control applications. This analogue-focused family features a 12-bit ADC with computation (ADCC) automating capacitive voltage divider (CVD) techniques for advanced capacitive touch sensing, averaging, filtering, oversampling and threshold comparison, two 8-bit DAC modules. The family showcases a 16-bit PWM module that provides dual independent outputs on the same time base. Additional features include vectored interrupt controller with fixed latency for handling interrupts, system bus arbiter, direct memory access (DMA) capabilities, UART with support for asynchronous, DMX, DALI and LIN protocols, SPI, I²C, and a programmable 32-bit CRC with memory scan.
- C compiler optimized RISC architecture, operating speed is DC-64MHz clock input
- User programmable source and destination sizes, hardware and software triggered data transfers
- Vectored interrupt capability, selectable high/low priority, programmable vector table base address
- Backwards compatible with previous interrupt capabilities, low-current power-on reset (POR)
- 32Kbyte program memory flash, 2048byte data SRAM, 512byte data EEPROM, 14-pin TSSOP package
- Configurable power-up timer (PWRT), brown-out reset (BOR), windowed watchdog timer (WWDT)
- Programmable code protection and write protection, device information area (DIA) stores
- Direct, indirect and relative addressing modes, fixed voltage reference measurement data
- Microchip unique identifier, temperature indicator factory calibrated data
- Industrial temperature range from -40°C to 85°C, 1.8V to 5.5V operating voltage range
Product details
| Product Range:
PIC18 Family PIC18F0xQ40 Series Microcontrollers
|
| Device Core:
PIC18
|
| Operating Frequency Max:
64MHz
|
| Program Memory Size:
32KB
|
| No. of Pins:
14Pins
|
| IC Case / Package:
TSSOP
|
| No. of I/O's:
12I/O's
|
| Interfaces:
I2C, SPI, UART
|
| RAM Memory Size:
2KB
|
| ADC Channels:
11Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
PIC18
|
| MCU Series:
PIC18F0xQ40
|
| Qualification:
-
|
Other details
| Brand |
MICROCHIP |
| Part Number |
PIC18F05Q40-I/ST |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
