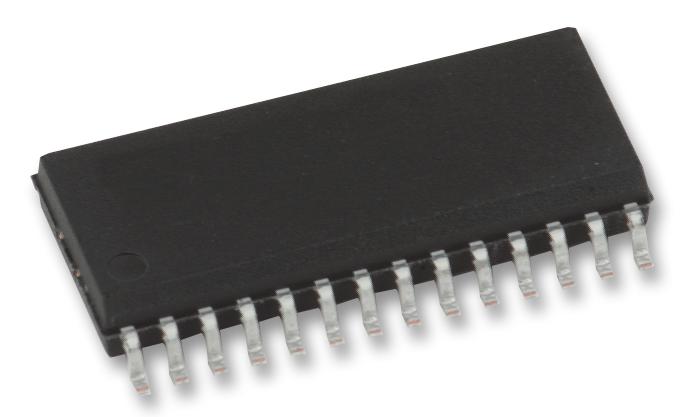

Microchip PIC16F882-I/SO PIC16F882-I/SO 8 Bit MCU Flash PIC16 Family PIC16F8XX Series Microcontrollers 20 MHz 3.5 KB 28 Pins

The PIC16F882-I/SO is a 8-bit CMOS Flash-based Microcontroller. The microcontroller features 128 bytes of EEPROM data memory, self programming, an ICD, 2 comparators, 11 channels of 10-bit Analogue-to-digital (A/D) converter, 1 capture/compare/PWM and 1 enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI�) or the 2-wire Inter-Integrated Circuit (I²C�) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). The PIC16F882 devices have two timers that offer necessary delays on power-up. One is the Oscillator Start-up Timer (OST), intended to keep the chip in reset until the crystal oscillator is stable. The other is the Power-up Timer (PWRT), which provides a fixed delay of 64ms (nominal) on power-up only, designed to keep the part in reset while the power supply stabilizes.

• High-performance RISC CPU
• Power-saving sleep mode
• Power-on reset (POR)
• Extended watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins
• In-Circuit Debug (ICD) via two pins
• Self-reprogrammable under software control
• Programmable code protection
• Enhanced capture/compare/PWM (ECCP) module with auto-shutdown and PWM steering
• Multiplexed master clear with pull-up/input pin

Applications

Automotive, Industrial, Consumer Electronics

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F882-I/SO
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
