Description

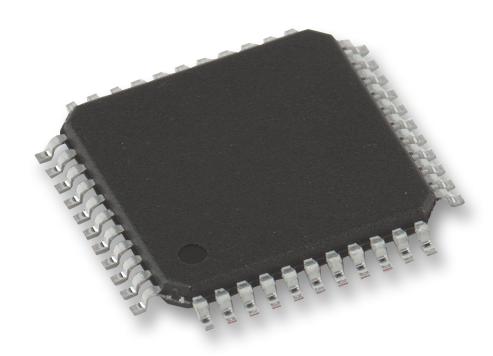

The PIC16F877A-I/PT is a flash based 8bit CMOS microcontroller in 44 pin TQFP package. The device has two 8bit timer/counter with 8bit pre-scaler, one 16bit timer/counter with pre-scaler, brown out reset (BOR) and two capture/compare PWM modules.
- Flash program memory of 14.3KB
- 368bytes of RAM and 256bytes data EEPROM
- 33 I/O pins
- 10bit, 8 channel A/D converter and two analogue comparators
- Operating frequency from DC to 20MHz
- Brown out detection circuitry for brown out reset (BOR)
- Wide operating voltage range from 4V to 5.5V
- MSSP, USART, PSP, SPI and I2C interfaces
- In-circuit serial programming (ICSP) via two pins
- Operating temperature range from -40°C to 85°C
Embedded Design & Development, Automotive, Industrial, Consumer Electronics
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | PIC16F877A-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
