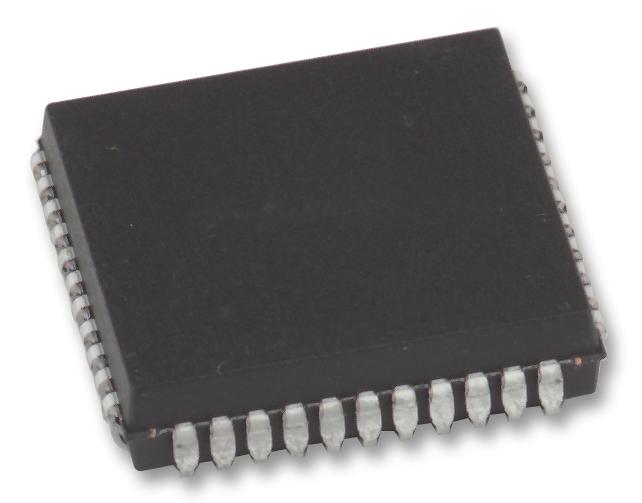

Microchip PIC16F877A-I/L 8 Bit MCU Flash PIC16 Family PIC16F8XX Series Microcontrollers 20 MHz 14 KB 44 Pins Plcc

The PIC16F877A-I/L is a 8-bit CMOS Flash-based Microcontroller. The PIC16F877A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 comparators, 8 channels of 10-bit Analogue-to-digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI�) or the 2-wire Inter-Integrated Circuit (I²C�) bus and a Universal Asynchronous Receiver Transmitter (USART). The data EEPROM and flash program memory is readable and writable during normal operation (over the full VDD range). This memory is not directly mapped in the register file space.

• High-performance RISC CPU
• Analogue comparator module with programmable on-chip voltage reference (VREF) module
• Data EEPROM retention of >40 years
• Self-reprogrammable under software control
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins
• Single-supply 5V In-Circuit Serial Programming
• Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving sleep mode
• In-Circuit Debug (ICD) via two pins
• Low-power consumption

Applications

Automotive, Industrial, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F877A-I/L
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
Application Note EN
