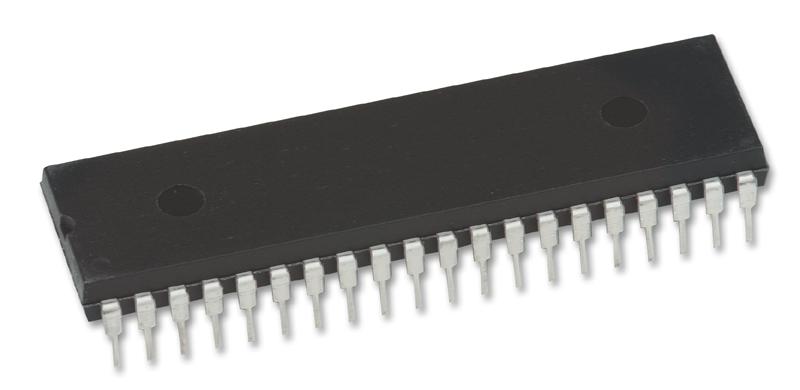

Microchip PIC16F877-20/P 8 Bit MCU Flash PIC16 Family PIC16F8XX Series Microcontrollers 20 MHz 14 KB 40 Pins DIP

The PIC16F877-20/P is a 8-bit 20MHz CMOS Flash-based Microcontroller. The PIC16F876 features 256 bytes of EEPROM data memory, self programming, an ICD, 5 channels of 10-bit Analogue-to-digital (A/D) converter, 2 additional timers, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI�) or the 2-wire Inter-Integrated Circuit (I²C�) bus and a Universal Asynchronous Receiver Transmitter (USART). The STATUS register contains the arithmetic status of the ALU, the RESET status and the bank select bits for data memory.

• High performance RISC CPU
• Only 35 single word instructions to learn
• All single-cycle instructions except for program branches which are two cycles
• Interrupt capability (up to 14 sources)
• Eight level deep hardware stack
• Direct, indirect and relative addressing modes
• Power-on reset (POR)
• Power-up timer (PWRT) and oscillator start-up timer (OST)
• Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving sleep mode
• Low power, high speed CMOS flash/EEPROM technology
• Fully static design

Applications

Automotive, Industrial, Consumer Electronics
