Description
The PIC16F872-I/SS is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size and 5-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- 1 (9-bit) file select register
- Hardware interrupt handling
- In-Circuit Serial Programming� (ICSP�)
- Power on reset (POR)
- Power-up timer (PWRT)
- Oscillator start-up timer (OST)
- Programmable code protection
- Power saving SLEEP mode
- In-circuit debugging via two pins
- 64bytes of EEPROM data memory
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Product Range: PIC16 Family PIC16F8XX Series Microcontrollers |
Device Core: PIC16 |
Operating Frequency Max: 20MHz |
Program Memory Size: 3.5KB |
No. of Pins: 28Pins |

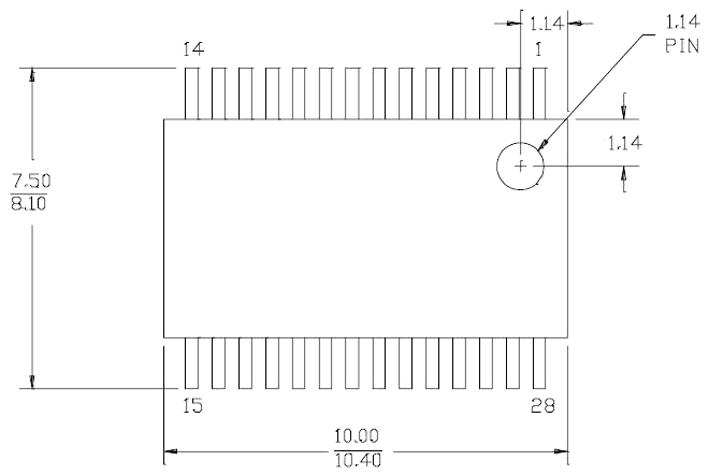

IC Case / Package: SSOP |
No. of I/O's: 22I/O's |
Interfaces: I2C, SPI |
RAM Memory Size: 128Byte |
ADC Channels: 5Channels |
ADC Resolution: 10Bit |
Supply Voltage Min: 4V |
Supply Voltage Max: 5.5V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 85°C |
IC Mounting: Surface Mount |
MCU Family: PIC16 |
MCU Series: PIC16F8xx |
Qualification: - |
MSL: MSL 1 - Unlimited |
