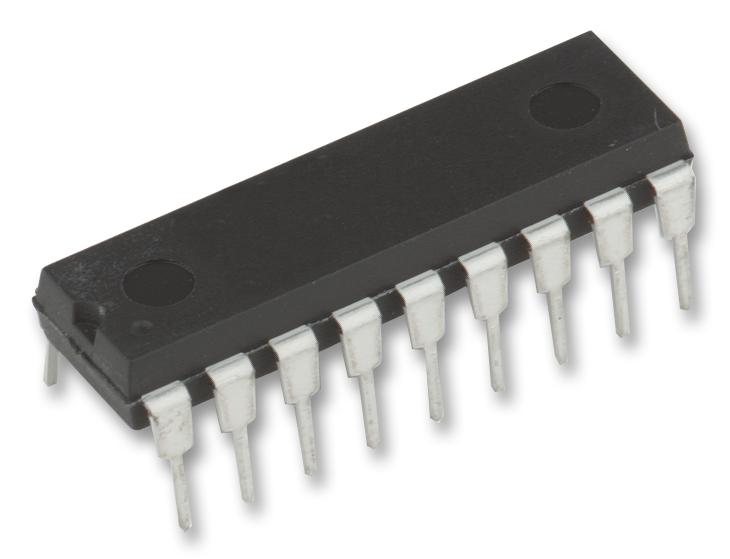

Microchip PIC16F819-I/P 8 Bit MCU Flash PIC16 Family PIC16F8XX Series Microcontrollers 20 MHz 3.5 KB 18 Pins DIP

The PIC16F819-I/P is a 8-bit Enhanced Flash Microcontroller with nanoWatt technology. The PIC16F819 belongs to the mid-range family of the PIC® devices. The devices differ from each other in the amount of flash program memory, data memory and data EEPROM. The PIC16F819 features 8MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI�) or the 2-wire Inter-Integrated Circuit (I²C�) bus and 5 channels of 10-bit Analogue-to-digital (A/D) converter.

• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins capability
• Processor read/write access to program memory
• Low-voltage programming
• In-Circuit debug (ICD) via two pins
• EEPROM data retention of >40 years
• 100000 Erase/write cycles enhanced flash program memory typical
• 16 I/O pins with individual direction control
• High sink/source current of 25mA
• -40 to +85°C Temperature range (industrial)

Applications

Automotive, Industrial, Consumer Electronics

Footnotes Product 1523943 has a pack size of 25 items. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F819-I/P
Quantity	Tube of 25
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
