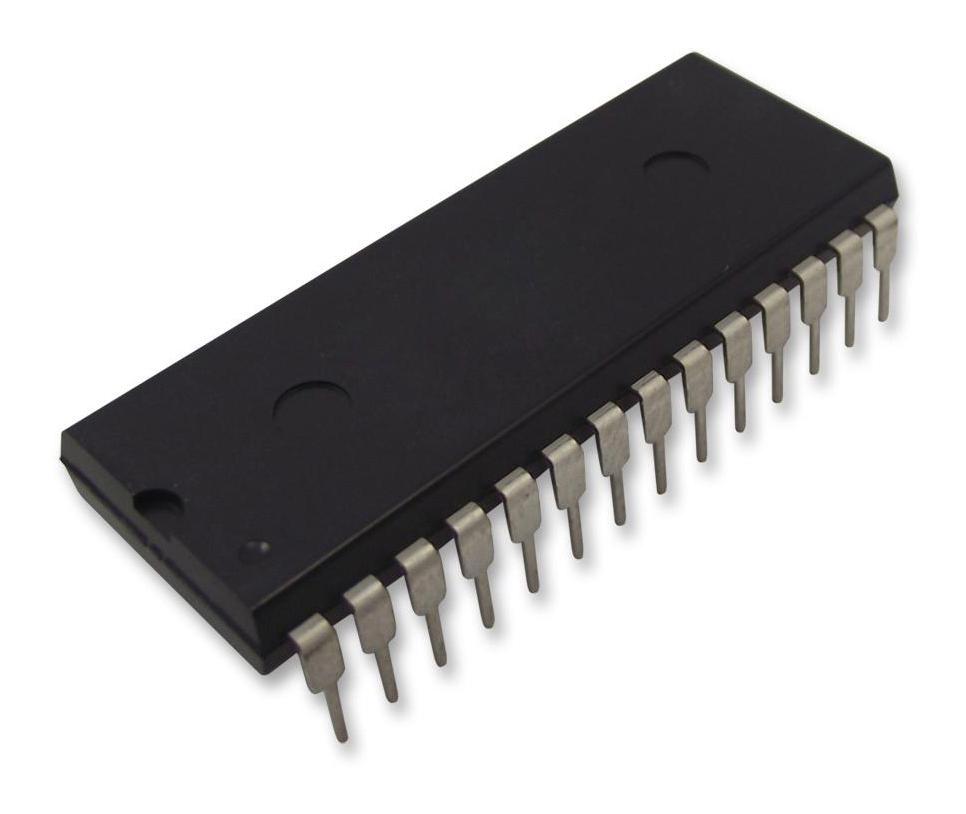

Microchip PIC16F723A-I/SP 8 Bit MCU Flash PIC16 Family PIC16F7XX Series Microcontrollers 20 MHz 7 KB 28 Pins DIP

The PIC16F723A-I/SP is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 192bytes of data memory size, 25 general-purpose I/O pins and 11-channel 8-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 1.8 to 5.5V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• Internal 16MHz oscillator
• 2x CCP (Capture/Compare/PWM)
• One 8-bit timer
• Two 16-bit timer
• Watchdog timer (WDT)
• Enhanced power-On/Off-Reset
• Brown-out reset (BOR)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• Built-in mTouchâ�¢ capacitive sensing module

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F723A-I/SP
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
