Description

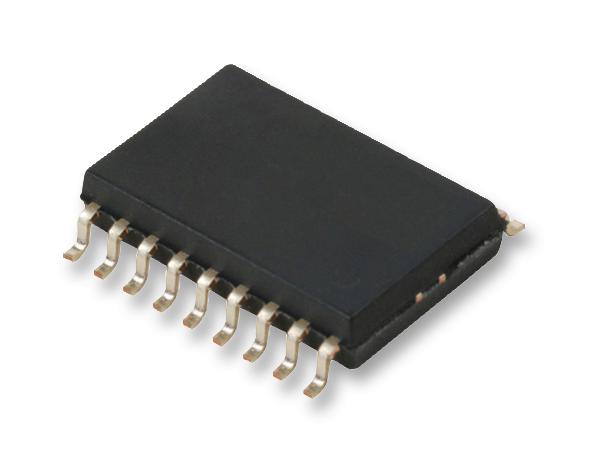

The PIC16F716-I/SO is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 13 general-purpose I/O pins and 4-channel 8-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- 1 (9-bit) file select register
- Hardware interrupt handling
- Brown-out reset (BOR)
- Power on reset (POR)
- Watch dog timer (WDT)
- Two 8-bit digital timers
- One 16-bit digital timer
- In-Circuit Serial Programming� (ICSP�)
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC16 Family PIC16F7XX Series Microcontrollers |
| Device Core: PIC16 |
| Operating Frequency Max: 20MHz |
| Program Memory Size: 3.5KB |
| No. of Pins: 18Pins |
| IC Case / Package: SOIC |
| No. of I/O's: 13I/O's |
| Interfaces: - |
| RAM Memory Size: 128Byte |
| ADC Channels: 4Channels |
| ADC Resolution: 8Bit |
| Supply Voltage Min: 2V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: PIC16 |
| MCU Series: PIC16F7xx |
| Qualification: AEC-Q100 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16F716-I/SO |
| Quantity | Each |
| Technical Data Sheet EN |  |
