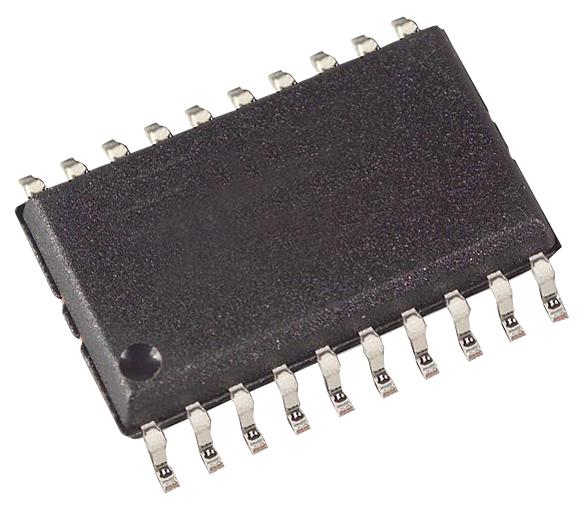

Microchip PIC16F690-I/SO 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 7 KB Pins Soic

The PIC16F690-I/SO is a 8-bit/20-pin Flash-based CMOS Microcontroller with nanoWatt technology. The low pin-count (20) PIC® flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2 to 5.5V, on-board EEPROM data memory and nanoWatt technology. Standard analogue peripherals include up to 12-channels of 10-bit A/D, an analogue comparator module with two comparators, programmable on-chip voltage reference and an enhanced capture/compare/PWM (ECCP+) w/dead band delay, auto-shutdown and restart options. The oscillator module has a wide variety of clock sources and selection features that allow it to be used in a wide range of applications while maximizing performance and minimizing power consumption.

• 256-byte EEPROM data memory
• Extended WDT
• MPLAB® ICD 2 programming support or debugging support with optional header adapter
• SSP with I²Câ�¢ compatible address mask option
• EUSART LIN 2.0 Compatible
• ECCP+ with PWM steering
• 12 A/D Channels
• Power-saving sleep mode
• Power-on reset (POR)
• Power-up timer (PWRTE) and oscillator start-up timer (OST)
• Brown-out reset (BOR) with software control option
• Multiplexed master clear/input pin
• Programmable code protection

Applications

Industrial, Automotive
