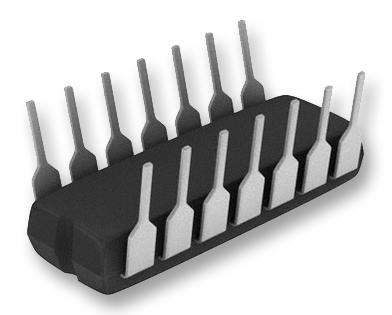

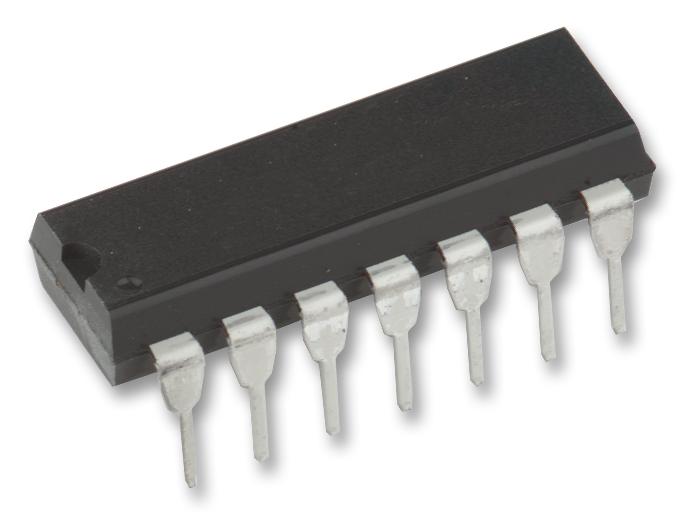

Microchip PIC16F688-I/P 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 7 KB 14 Pins DIP

The PIC16F688-I/P Flash microcontroller offers all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0-5.5 volts, on-board EEPROM Data Memory, and nanoWatt Technology. Standard analog peripherals include up to 8 channels of 10-bit A/D, an analog comparator module w/ programmable on-chip voltage reference and an Enhanced USART (EUSART) peripheral that supports communications protocols such as RS232/485 as well as the LIN protocol.

• 256 bytes of EEPROM data memory
• Extended WDT
• MPLAB® ICD 2 programming support or debugging support with optional header adapter
• Precision internal oscillator - software selectable 8 MHz - 32 KHz.
• nanoWatt Technology
• Software selectable BOR
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins
• Programmable Code Protection
• A/D Converter
• 8-level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes
• Software selectable frequency range of 8 MHz to 125 kHz
• Software tunable
• Two-Speed Start-Up mode
• Crystal fail detect for critical applications
• Clock mode switching during operation for power savings

Applications

Consumer Electronics, Embedded Design & Development, System Monitoring, Test & Measurement, Clock & Timing, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F688-I/P
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
